Removing servo motor for emergency release

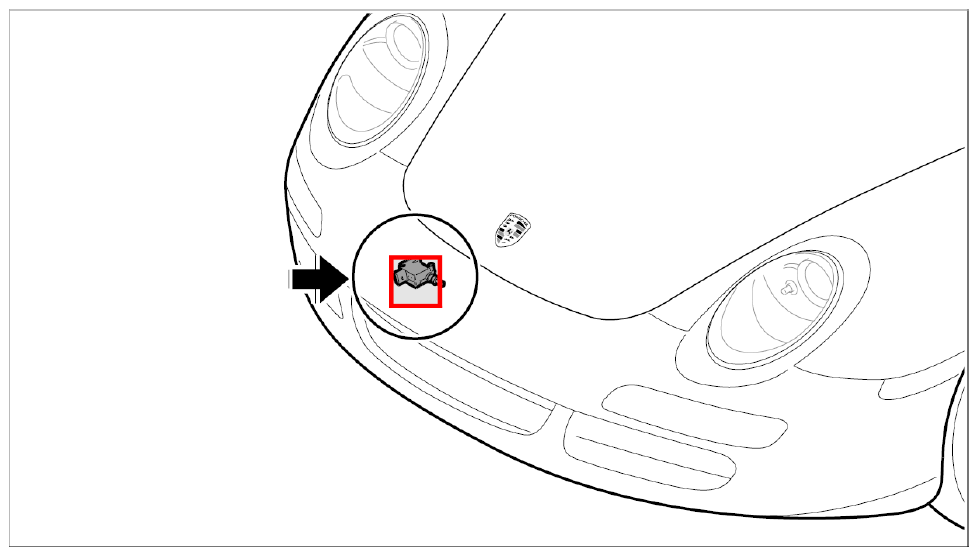

Fig 1: Identifying Servo Motor Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Switch off ignition and remove ignition key.
2. Release electric connector -A-  and unplug it at the servo motor.

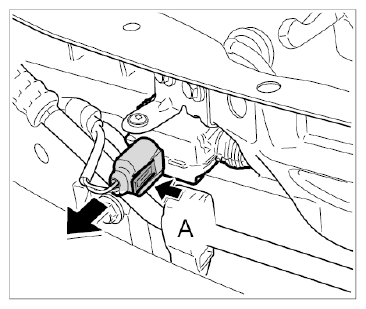

   Fig 2: Removing Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unscrew both fastening screws -1-  .

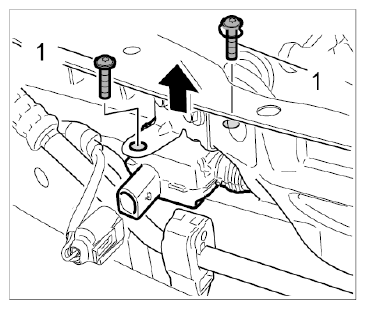

   Fig 3: Removing Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Turn the servo motor and disengage the retaining pin from the cable at the servo motor.

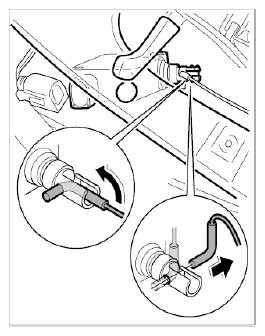

   Fig 4: Disengaging Cable At Actuating Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove servo motor.
