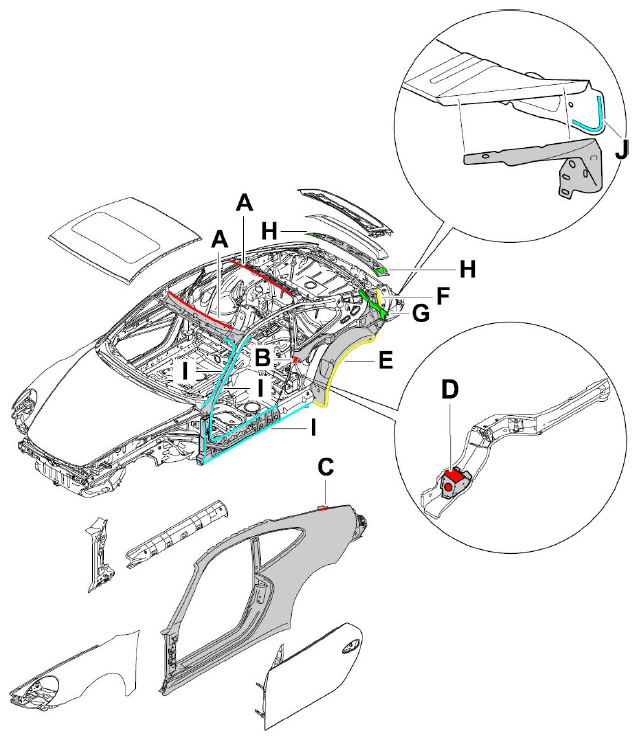

Diagram Of Body Bonding Points And Sealing Elements
- A - Bonding area for cowl panel frame, roof frame → 510355 REPLACING ROOF FRAME
- B - Bonding area for window slot reinforcement → 536155 REPLACING INNER SIDE SECTION
- C - Bonding area for side section → 536155 REPLACING INNER SIDE SECTION
- D - Expanded sealant in rear side member. If the side member is replaced during repairs, the side member is sealed with a 2K acoustic filling foam. → 534855 REPLACING REAR SIDE MEMBER
- E - Spot welding/bonding method in area of wheel housing, inner side section and outer side section. → 535555 REPLACING SIDE SECTION
- F - Bonding area for light housing → 535555 REPLACING SIDE SECTION
- G - Seal (molded part) in area of inner side section and outer side section. → 535555 REPLACING SIDE SECTION
- H - Expanded sealant riveted to rear center panel.
- I - Spot welding/bonding method in area of inner side member → 536155 REPLACING INNER SIDE SECTION
- I - Spot welding/bonding method in area of inner A-pillar and cowl panel frame → 513755 REPLACING OUTER HINGE PILLAR
- J - Spot welding/bonding method in area of lateral reinforcement → 531755 SIDE REINFORCEMENT
The bonding and sealing elements must be replaced during repairs. The procedure is described in the relevant chapter on body repairs.
