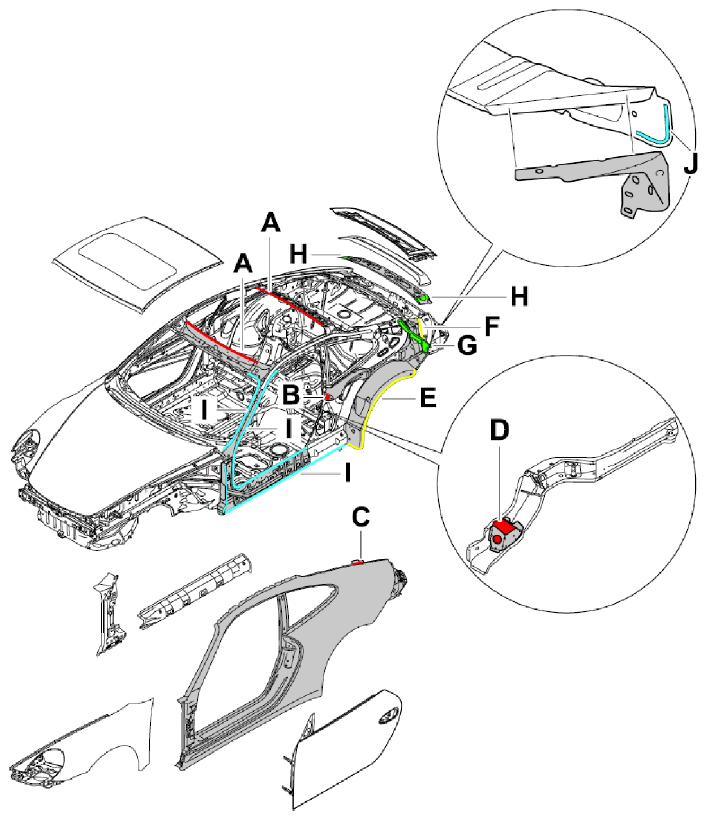

Diagram Of Body Bonding Points And Sealing Elements

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Bonding area for cowl panel frame, roof frame → 510355 REPLACING ROOF FRAME
2. Bonding area for window slot reinforcement → 536155 REPLACING INNER SIDE SECTION
3. Bonding area for side section → 536155 REPLACING INNER SIDE SECTION
4. Expanded sealant in rear side member. If the side member is replaced during repairs, the side member is sealed with a 2K acoustic filling foam. → 534855 REPLACING REAR SIDE MEMBER
5. Spot welding/bonding method in area of wheel housing, inner side section and outer side section. → 535555 REPLACING SIDE SECTION
6. Bonding area for light housing → 535555 REPLACING SIDE SECTION
7. Seal (molded part) in area of inner side section and outer side section. → 535555 REPLACING SIDE SECTION
8. Expanded sealant riveted to rear center panel.
9. Spot welding/bonding method in area of inner side member.

1. I  - Spot welding/bonding method in area of inner A-pillar and cowl panel frame → 513755 REPLACING OUTER HINGE PILLAR
2. J  - Spot welding/bonding method in area of lateral reinforcement → 531755 SIDE REINFORCEMENT

The bonding and sealing elements must be replaced during repairs. The procedure is described in the relevant chapter on body repairs.
