Installing Rear Gas Spring At The Body

→ Always replace both rear gas springs at the same time.

1. A second person must hold the rear lid to prevent it from closing accidentally.

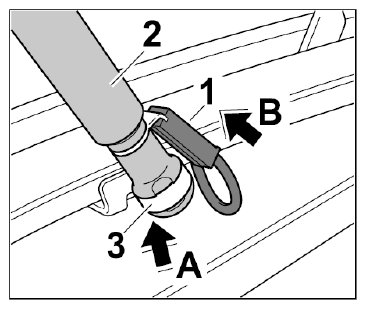

   Fig 1: Engaging Rear Gas Spring At Body

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press the rear gas spring -2-  onto the ball head -Arrow A-  until the rear gas spring -2-  locks with an audible click.
3. Check that the safety clip -3-  has engaged correctly. Repeat the procedure if necessary.
4. Fit connector for rear window -1-  onto the rear gas spring -2-  (-Arrow B-  ).
5. Check that the rear gas springs are working correctly. → Checking Rear Gas Spring
