Inserting Rear Window Into The Body
CAUTION:
Danger of material damage if specified curing time of adhesive is not observed!
- There will not be a proper adhesive bond if the prescribed curing time of the adhesive is not observed!
→ The vehicle must not be used until the curing time has elapsed.
→ Curing time: 3 hours
→ Temperature: at least 10°C
→ Fixing time: approx. 1 hour
Information
- Two persons are needed to insert and adjust the rear window.
Information
- The rear window can no longer be aligned, because the bonding section on the seal immediately sticks to the body when the rear window is installed.

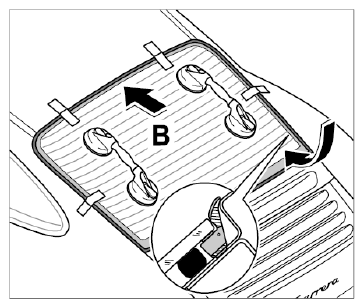

- Insert the rear window into the window aperture and fit it at the previously marked positions.
