Applying Adhesive On The Rear Window

Information

• When applying the adhesive, it is essential to ensure that the adhesive bead overlaps by approx. 30 mm at the beginning and at the end.

1. Using bonding gun -A-  apply 2-component adhesive to the rear window along the seal -3-  in the form of a triangular bead with the dimension -X= approx. 15 mm- -Y= approx. 8 mm-  .

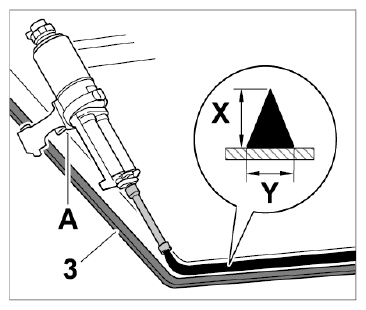

   Fig 1: Identifying Adhesive Applying Area Using Bonding Gun

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• When applying the adhesive, it is essential to ensure that the adhesive bead overlaps by approx. 30 mm at the beginning and at the end.

1. Using bonding gun -A-  apply 2-component adhesive to the rear window along the seal -3-  in the form of a triangular bead with the dimension -X= approx. 15 mm- -Y= approx. 8 mm-  .
   Fig 1: Identifying Adhesive Applying Using Bonding Gun

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
