Aligning Rear Window

Information

• Two persons are needed to insert and adjust the rear window.

1. Apply suction cups -B-  to the rear window and insert the rear window into the window aperture.

   Information

   • Ensure that the rear window can no longer be aligned after it is inserted.
2. Align the rear window in the Z and Y directions. Mark the rear window with adhesive tape and remove.

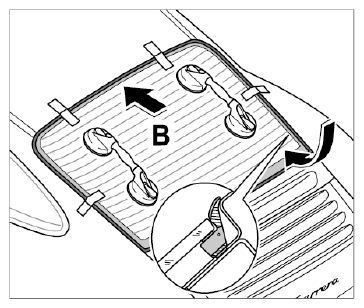

   Fig 1: Aligning Rear Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
