Removing Side Window

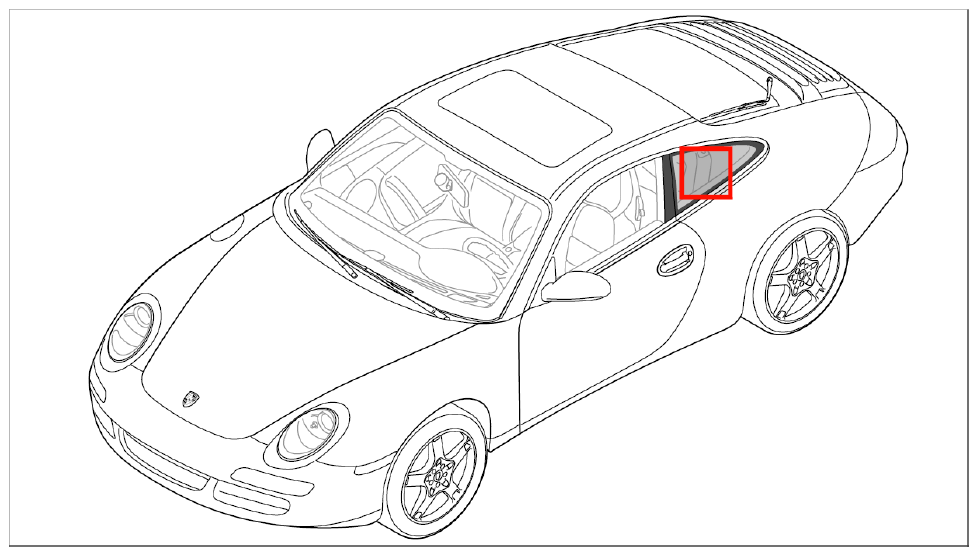

Fig 1: Identifying Position Of Side Window
G09826655Courtesy of PORSCHE CARS NORTH AMERICA, INC.

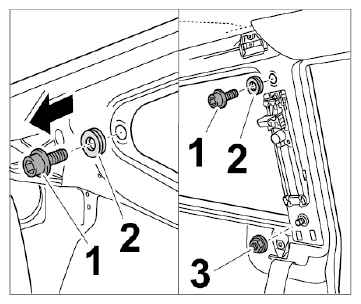

  1. Unscrew fastening screws -1-  and remove washer -2-  . Unscrew fastening nuts -3-  .
    Fig 2: Loosening Side Window
    G09826656Courtesy of PORSCHE CARS NORTH AMERICA, INC.

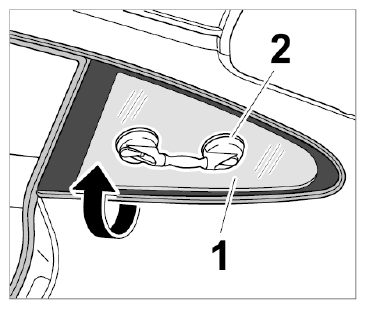

  2. Affix suction cups -1-  to the side window. Pull out side window -2-  downward in -direction of arrow-  .
    Fig 3: Removing Side Window
    G09826657Courtesy of PORSCHE CARS NORTH AMERICA, INC.
