Installing Side Window

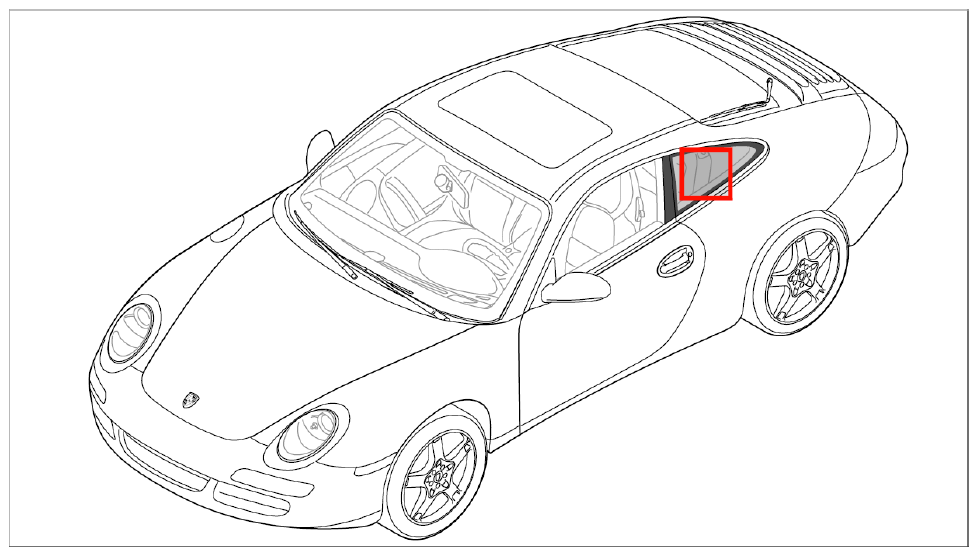

Fig 1: Identifying Position Of Side Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The removed side window can be reinstalled if there is no prior damage to the side window.

1. Affix suction cups -2-  to the side window -1-  . Guide side window -1-  up into the B-pillar opening -direction of arrow A-  .

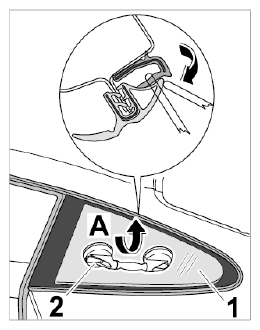

   Fig 2: Positioning Side Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press side window -1-  up in -direction of arrow A-  , hold it and insert it into the lower B-pillar opening -arrow B-  .
3. Slide side window -1-  backwards using suction cups -arrow C-  until the casing -2-  engages in the C-pillar.

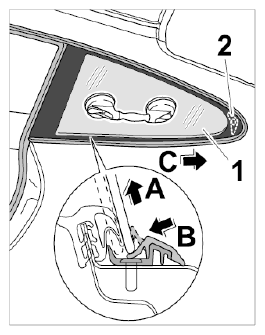

Fig 3: Guiding Side Window Into Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Pull the lip of the seal forward under the side window -1-  using a plastic spatula.

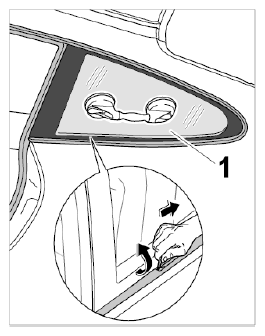

   Fig 4: Pulling Rubber Seal Forward

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Adjust side window according to door window using the specified dimensions, tolerances and torques. → Gap dimension A: 7 mm+/-1 mm

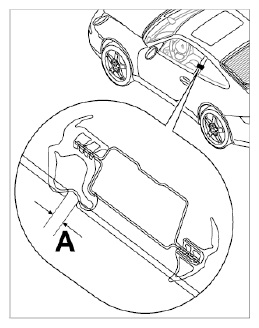

   Fig 5: Identifying Door Window To Side Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Coat fastening screw -1-  with Loctite 243
7. Tighten fastening screw -1-  and washer -2-  . Tighten fastening nuts -3-  . Tightening torques → Tightening torque: 9.7 Nm (7.2 ftlb.) → Tightening torque: 23 Nm (17 ftlb.)

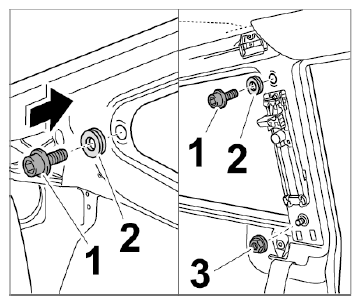

   Fig 6: Securing Side Window
