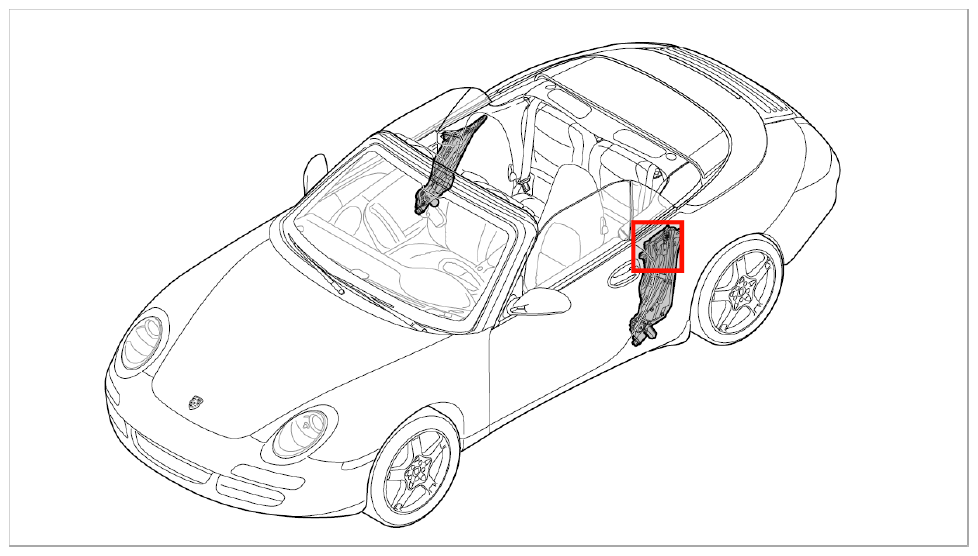

Installing Rear Window Lifter: Notes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

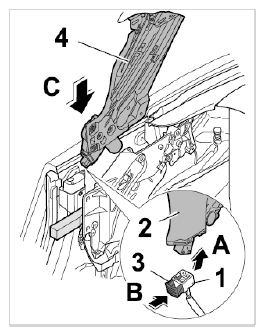

- Connect electric plug connection -1-
to the window regulator motor -2-
(-arrow A-
) and lock the latch -3-
(-arrow B-
).
- Guide power windows mechanism -4-
into the window shaft from above -arrow C-
and position it in the mounts in the inner side section.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

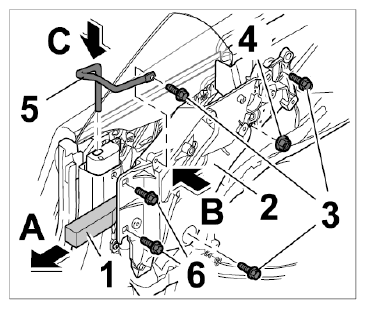

- Remove spacing block -1-
between the B-pillar and convertible top support -2-
(-arrow A-
). Position convertible top support -2-
(-arrow B-
). Position and tighten fastening screws -3-
and fastening nuts -4-
in the convertible top support -2-
. → Tightening torque: 23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Insert the deflection fitting -5-
into the belt guide section mounting -arrow C-
. Screw in and tighten fastening screws -6-
. → Tightening torque: 50 Nm (37 ftlb.)
