Installing Hydraulic Cylinder

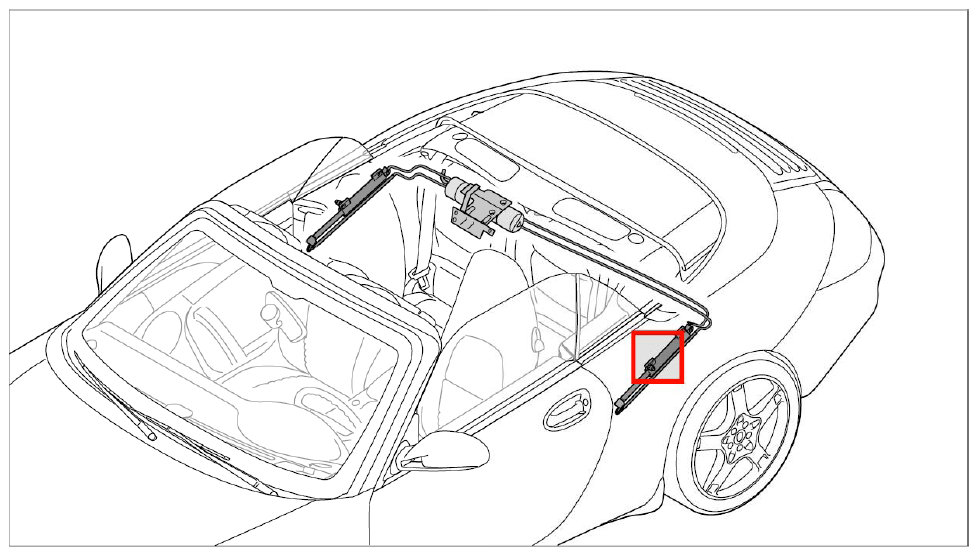

Fig 1: Identifying Position For Hydraulic Cylinder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position hydraulic cylinder -6- with the drive lever on the convertible top support. Insert potentiometer fork into the bolt on the hydraulic housing (on the left side only).
Route hydraulic line Fig 2 into the clamp under the water drain hose. In Fig 2 and Fig 2, press the hydraulic lines into the clips. Tighten fastening nuts -5- . → Tightening torque: 17 Nm (13 ftlb.)+/-2 Nm (+/-1.5 ftlb.)

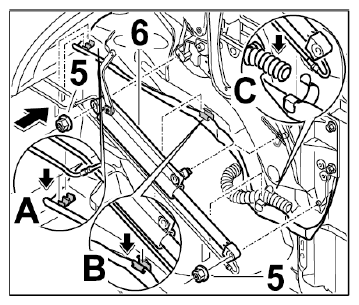

Fig 2: Installing Hydraulic Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit drive lever -2- and secure with retaining clip -1- .

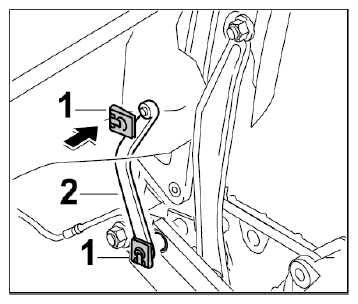

Fig 3: Installing Drive Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert splash guard -3- into the chamber in the water drip pan -4- .

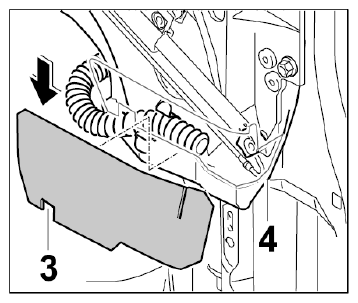

Fig 4: Installing Splash Guard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
