Installing Rear Power Windows Mechanism

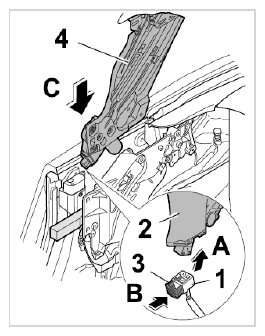

- Install power windows mechanism.
- 1.1. Connect electric plug connection -1-
to the window regulator motor -2-
(-arrow A-
) and lock the latch -3-
(-arrow B-
).
- 1.2. Guide power windows mechanism -4-
into the window shaft from above -arrow C-
and position it in the mounts in the inner side section.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

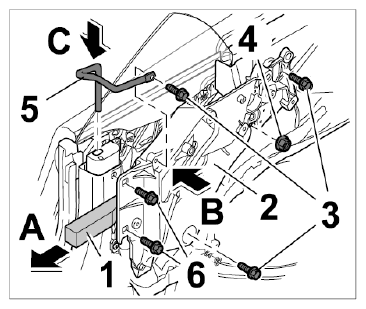

- Secure the convertible top support.
- 2.1. Remove spacing block -1-
between the B-pillar and convertible top support -2-
(-arrow A-
).
- 2.2. Position convertible top support -2-
(-arrow B-
).
- 2.3. Position and tighten fastening screws -3-
and fastening nuts -4-
in the convertible top support -2-
. → Tightening torque: 23 Nm (17 ftlb.)
- 2.4. Insert the deflection fitting -5-
into the belt guide section -arrow C-
.
- 2.5. Screw in and tighten fastening screws -6-
. → Tightening torque: 50 Nm (37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
