Removing Front Power Windows

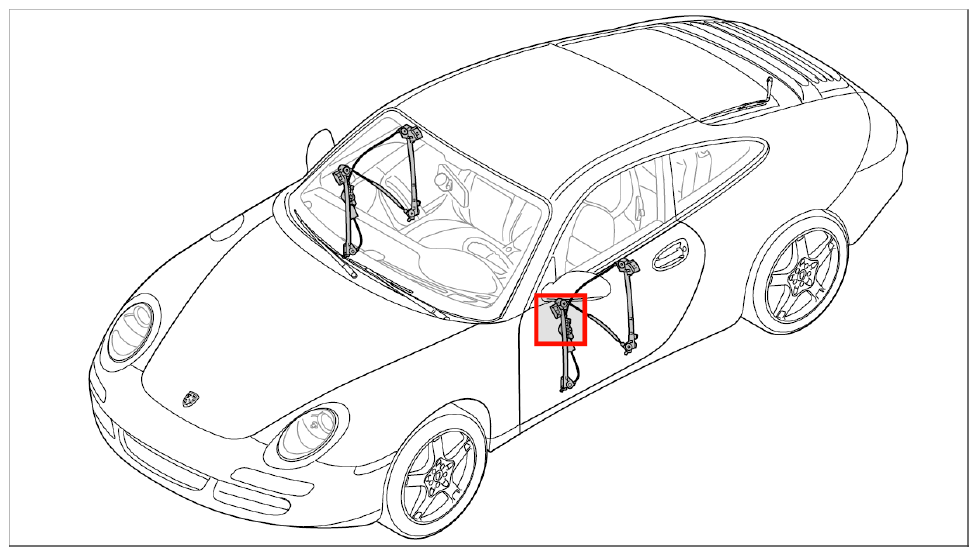

Fig 1: Identifying Position Of Front Power Windows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove rubber sleeves -1- .

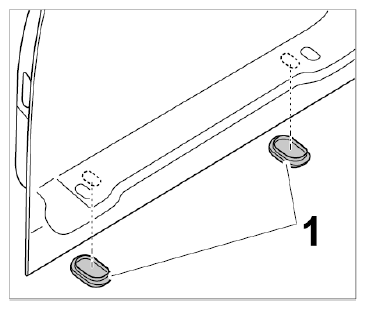

Fig 2: Identifying Rubber Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip cable at retaining clip -1- .

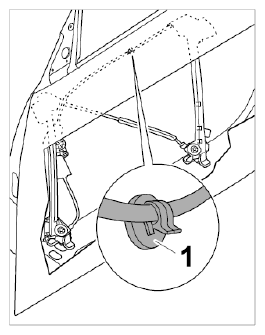

Fig 3: Identifying Cable At Retaining Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening nuts -2- on power windows -1- .

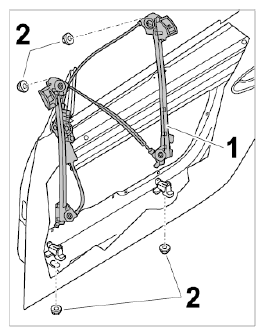

Fig 4: Releasing Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold power windows -1- together and remove through the door opening -arrow- .

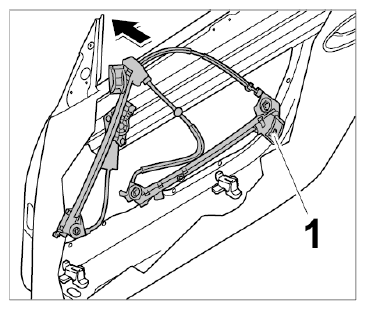

Fig 5: Removing Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
