Adjusting The Lower Stop Of The Power Window Unit

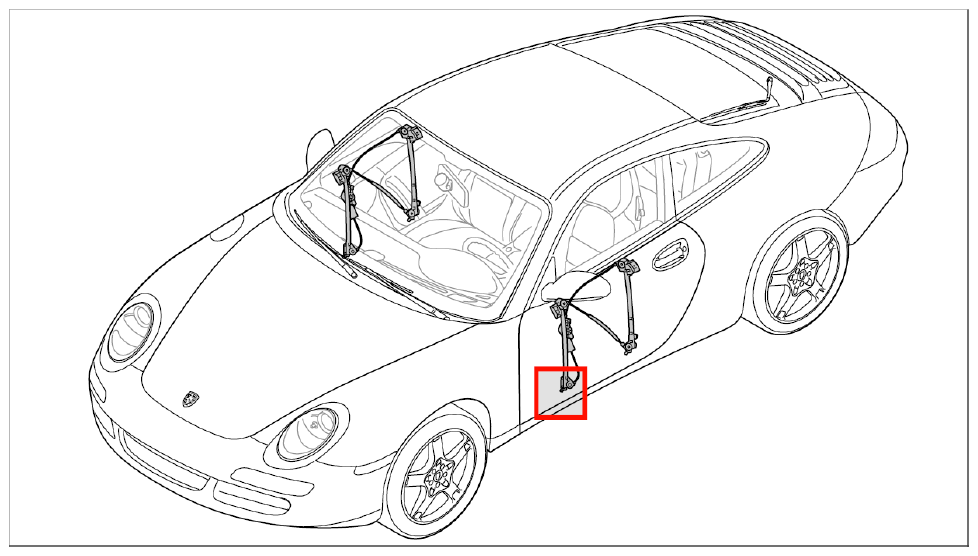

Fig 1: Identifying Position Of Front Power Windows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• When replacing the power window unit, make sure that the correct position of the lower limit stop is selected for the respective model.
• There are three bores lying one above the other with the screwed-on limit stop in the front power window unit rail.
• The limit stop must be fitted in the bottom bore for the 997 model.

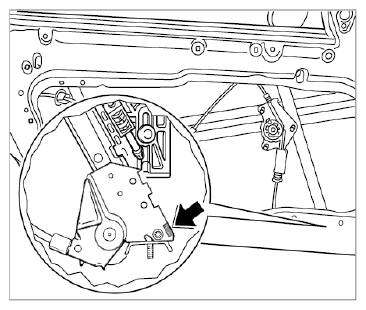

  Fig 2: Identifying Limit Stop Adjustment

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
