Installing The Front Window Shaft Seal

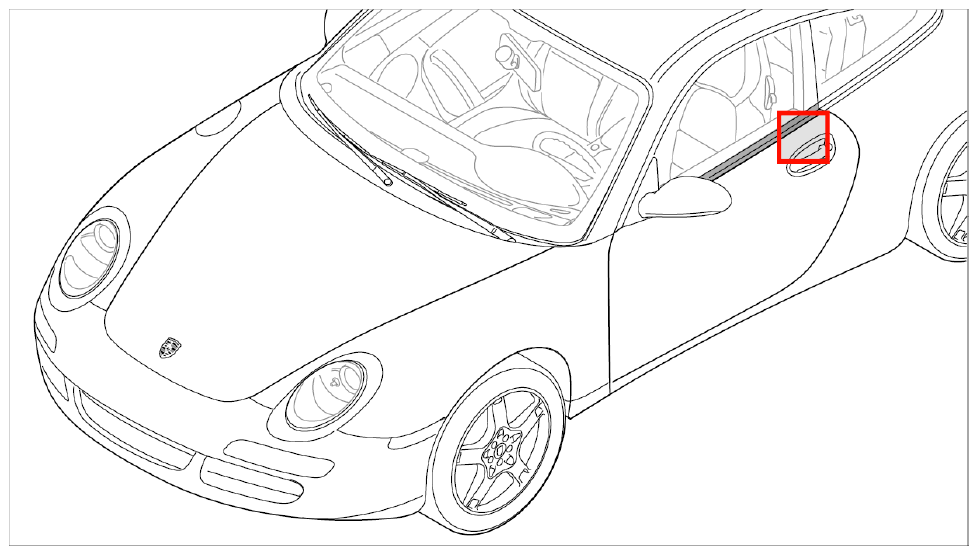

Fig 1: Identifying ↓Position Of Front Window Shaft Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ During installation, make sure that no lubricant from the window guides gets on to the door window glass.

→ Clean the door window glass and check that the front window channel seal is clean.

→ Replace damaged window channel seal.

Information

• Make sure horizontal alignment is correct (Arrows C, D).

1. Attach front window shaft seal -1-  - starting at the front end -Arrow A-  - to the sheetmetal door flange -2-  from above -Arrow B-  .

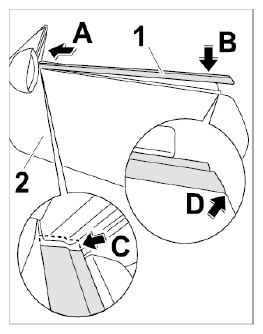

   Fig 2: Identifying Installing Front Window Shaft Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Close the front door window -1-  fully.

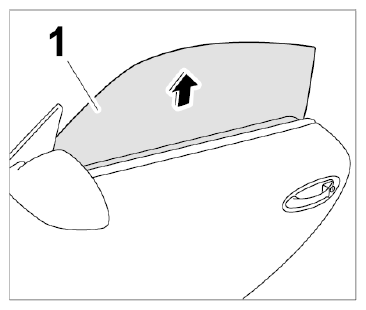

   Fig 3: Closing Front Door Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
