Tools And Materials

The following tools and materials are required for removing and installing the windscreen with 2-component adhesive:

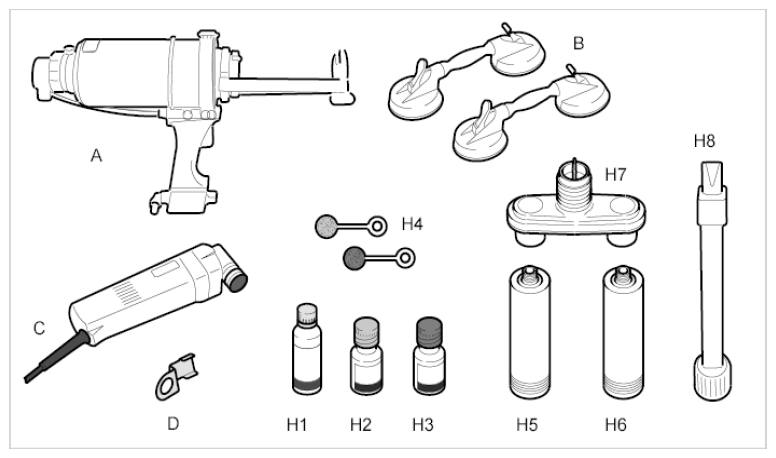

Fig 1: Identifying Tools And Materials

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Item.	Designation	Explanation
-A-	Double cartridge pistol VAS 5237 WE 1278
-B-	Pipette - Stahlwille WE 1140
-C-	Special electric cutter - fine WE 1137
-D-	Flashing knife, U-type 639.031.130.22
-H-	→ ADHESIVE SET	Contains set components H1-H8

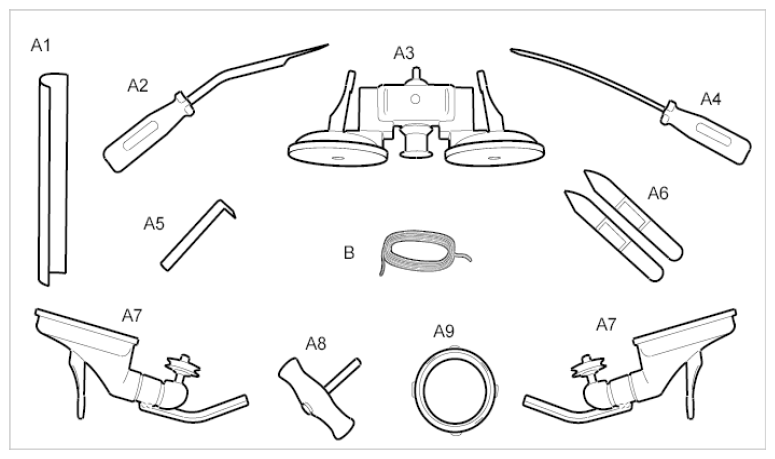

Fig 2: Glass Separating Tool

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Item	Designation	Source	Explanation
-A-	Separator for bonded windows V.A.G. 1474 B WE 1187		Contains set components A1-A9
-B-	Cutting thread

Item	Designation
-A1-	Guide rails
-A2-	Cutting tool (wire holder)
-A3-	Spooling device
-A4-	Awl
-A5-	Guide rails
-A6-	Filler
-A7-	Steering roller with arm bracket
-A8-	Handle
-A9-	Square cutting wire
