Fitting Windscreen Into The Body
Information
- Two persons are needed to insert and adjust the windscreen.
Information
- Owing to the bonding section, the windscreen can no longer be aligned on the seal because the section immediately adheres to the windscreen when inserted.

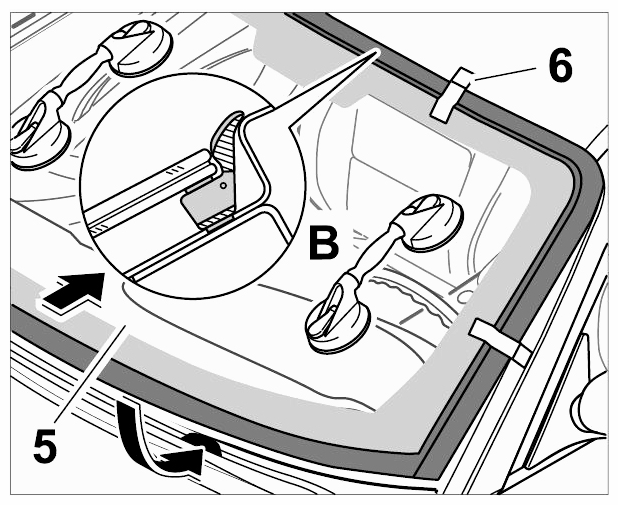

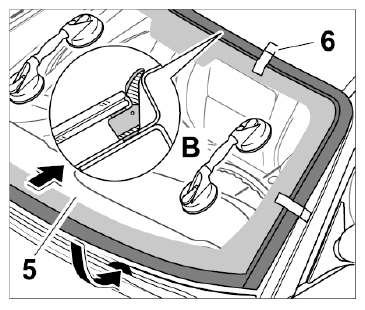

- Apply suction cups -B- to the windscreen -5- and insert the windscreen into the window aperture. Press the windscreen -5- up as far as it will go. When doing so, press the lower edge of the glass against the spacer blocks. Mark the windscreen with adhesive tape -6- and remove.
