Applying Adhesive To The Windscreen

Information

• When applying the adhesive, it is essential to ensure that the adhesive bead overlaps by approx. 30 mm at the beginning and at the end.

1. Using the bonding gun -A-  , apply 2-component adhesive to the windscreen along the seal -4-  in the form of a triangular bead measuring -X= ca. 15 mm- -Y= ca. 8 mm-  .

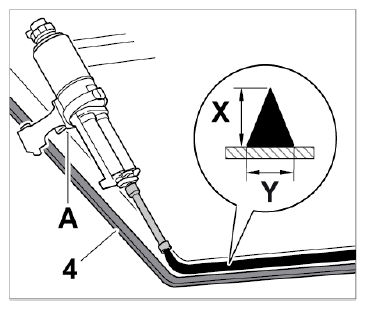

   Fig 1: Identifying Adhesive Applying Area On Windscreen

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
