Removing Front Wheel Housing Liner - Rear Section

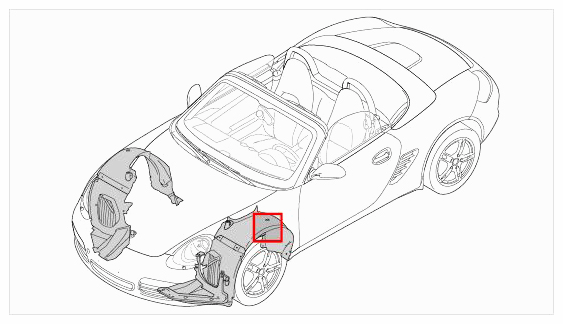

Fig 1: Front Wheel Housing Liner Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening nuts -1-  and fastening screws ↓-2-  .

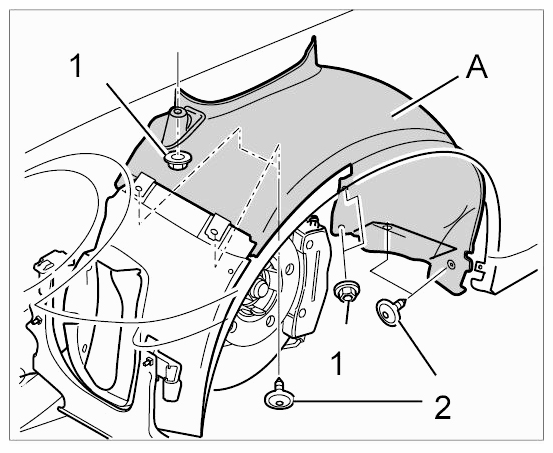

2. Fig 2: Identifying Wheel Housing Liner Part A, Fastening Nuts And Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Remove wheel housing liner -A-  .
