Removing Masking Panel

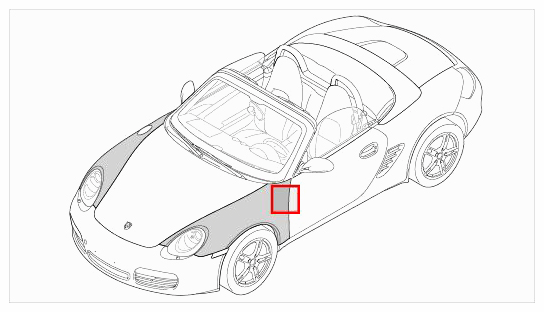

Fig 1: Fender Location
G09588305Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Press out pin from plastic expansion rivet -1-  and remove masking panel -2-  from fender -3-  .

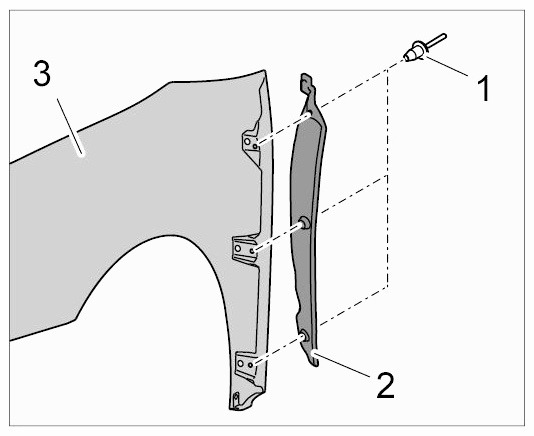

    2. Fig 2: Identifying Plastic Expansion Rivet, Masking Panel And Fender
    G09588306Courtesy of PORSCHE CARS NORTH AMERICA, INC.
