Removing Fuel Tank Cap

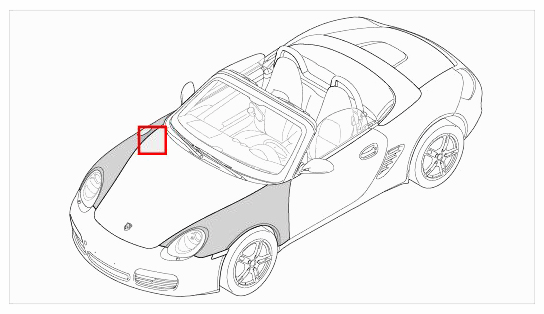

Fig 1: Fuel Tank Cap Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The following points apply only to the right fender  .

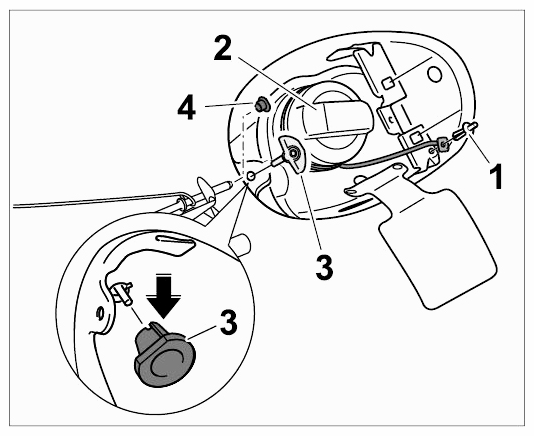

1. Press out plastic pin in centre of rivet head -1-  and remove fuel tank cap -2-  . Then unclip rubber stop -3-  and rubber sleeve -4-  .
   Fig 2: Removing Fuel Tank Cap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
