Releasing Fender From A-Pillar

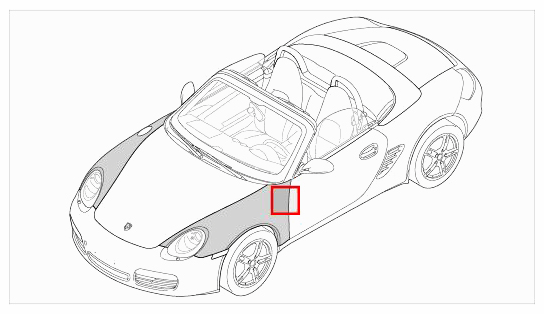

Fig 1: Fender Location
G09588303Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -18-  at A-pillar and pull fender out -19-  downwards -C-  and forwards -D-  .
  2. Check fastening nut -20-  , replacing if necessary.

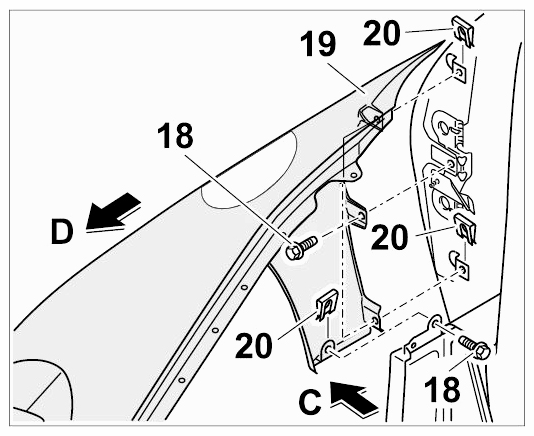

    3. Fig 2: Releasing Fender From A-Pillar
    G09588304Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove switching element for filler flap. → REMOVING SWITCHING ELEMENT FOR FILLER FLAP
