Releasing Bottom Of Fender

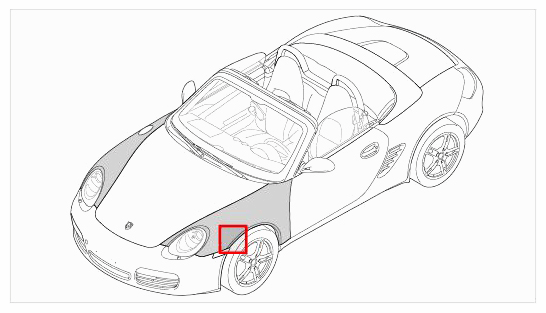

Fig 1: Fender Component Location
G09588295Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release fastening nut -10-  from fender strut -11-  and unscrew bracket -12-  .

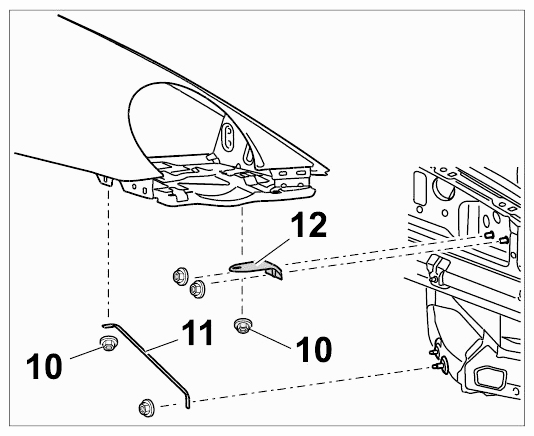

    2. Fig 2: Identifying Fender Strut, Bracket And Fastening Nuts
    G09588296Courtesy of PORSCHE CARS NORTH AMERICA, INC.
