Fastening Top Of Fender

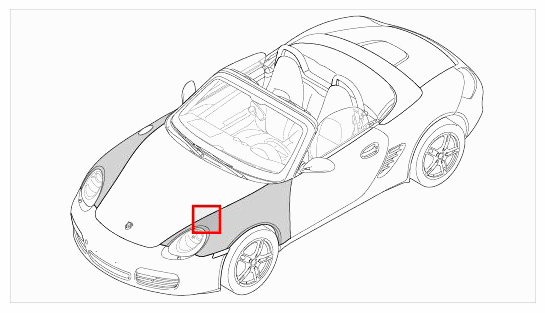

Fig 1: Fender Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw in fastening screws -13- on top flange and tighten lightly.

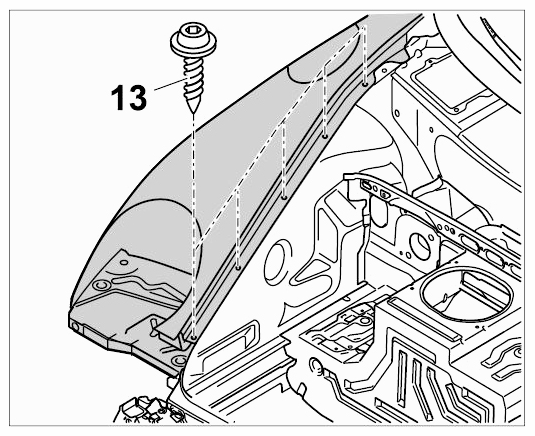

Fig 2: Identifying Top Of Fender Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust the contour and gap dimensions relative to the front door and front lid. → WM 5X00IN DIAGRAM - BODY GAP DIMENSIONS (ALL MODELS)
Tighten fastening screws -13- with specified tightening torque → Tightening torque: 4.5 Nm (3.5 ftlb.).
Tighten fastening screws M6 -18- with tightening torque → Tightening torque: 9.7 Nm (7.0 ftlb.).
