Water Drainage Diagram

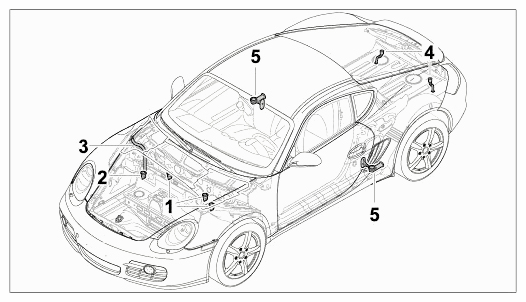

Fig 1: Water Drainage Diagram
G09588208Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Water drain: plenum panel
  2. Water drain: plenum panel (vehicles without luggage compartment ventilation)
  3. Water drain: tank tray
  4. Water drain: spoiler element
  5. Water drain: flow duct
