Removing Cover For Side Underbody

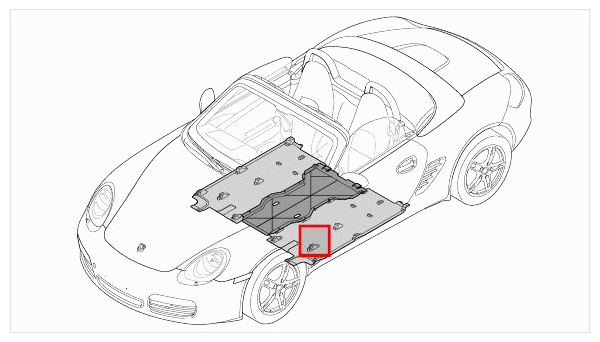

Fig 1: Cover For Side Underbody Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Fastening nuts cannot be used again following removal.

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -2-  and fastening nuts -3-  .

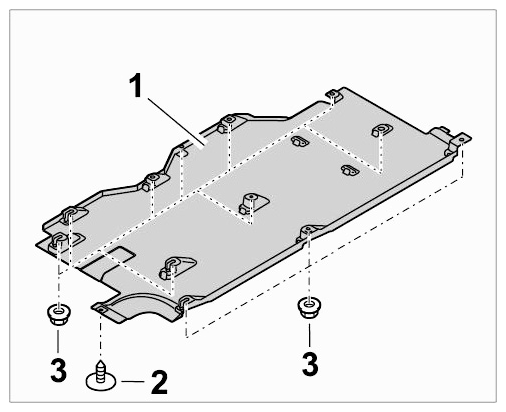

   Fig 2: Identifying Side Cover, Fastening Screws And Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull cover for side underbody -1-  out of the overlaps.
