Installing Cover For Centre Underbody: Notes

Fig 1: Identifying Installation Position Of Cover For Centre Underbody

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for center underbody -4-  while pressing covers for side underbody slightly down.

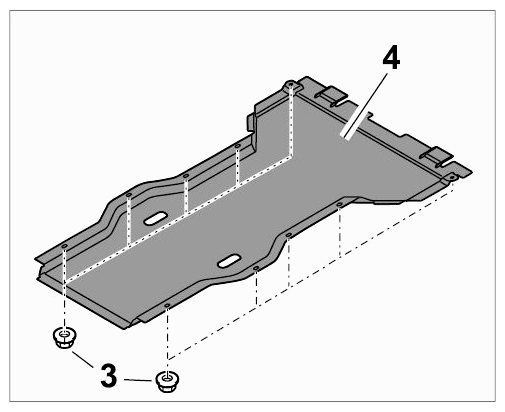

   Fig 2: Identifying Centre Underbody Cover And Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Tighten fastening nuts -3-  . Tightening torque → Final tightening: 1.5 ftlb.
