Installing Cover For Side Underbody

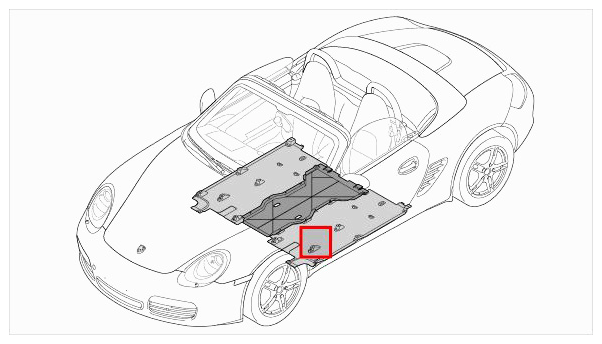

Fig 1: Identifying Installation Position Of Cover For Side Underbody

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for side underbody -1-  .
2. Tighten fastening screw -2-  . Tightening torque → Final tightening: 1.5 ftlb.
3. Tighten fastening nuts -3-  . Tightening torque → Final tightening: 1.5 ftlb.

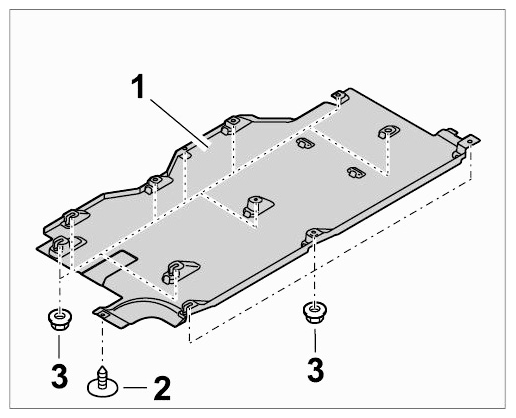

Fig 2: Identifying Side Underbody Cover And Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
