Removing Dashboard Support: Notes

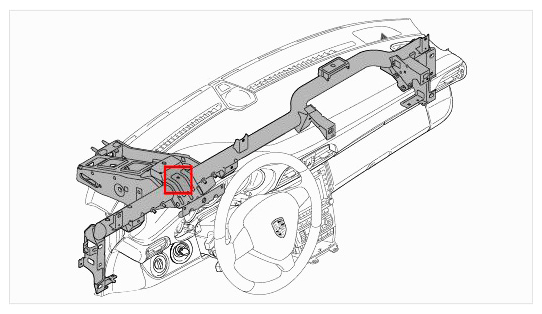

Fig 1: Dashboard Support Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for USA/Canada version vehicles

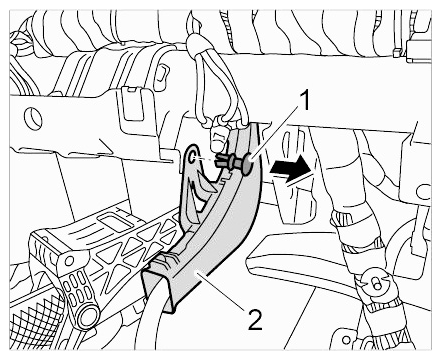

1. Unscrew fastening screws -1-  and remove knee protector -2-  .
   Fig 2: Identifying Knee Protector And Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Push out fixing clip -1-  and unclip length compensation -2-  .
   Fig 3: Removing Length Compensation Fixing Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

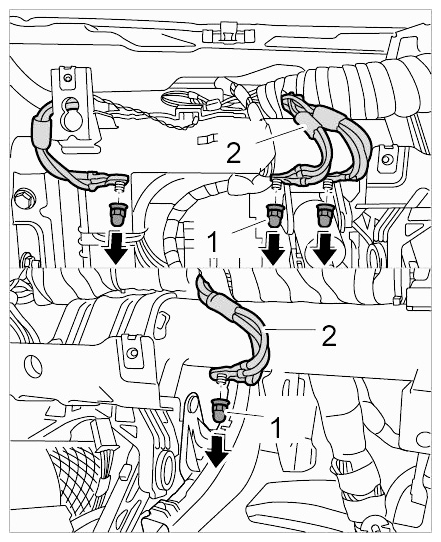

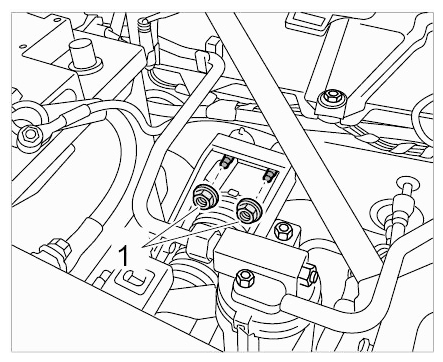

3. Undo fastening nuts -1-  and place ground straps -2-  to one side.
   Fig 4: Loosening Ground Straps

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

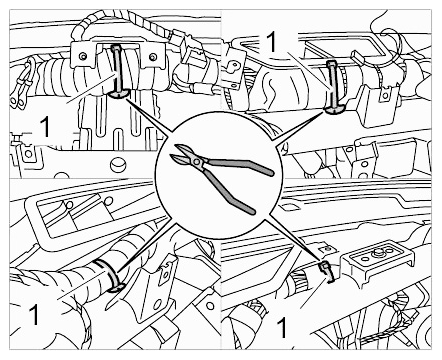

4. Cut tie-wraps -1-  on main wire harness.
   Fig 5: Cutting Tie-Wraps On Main Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

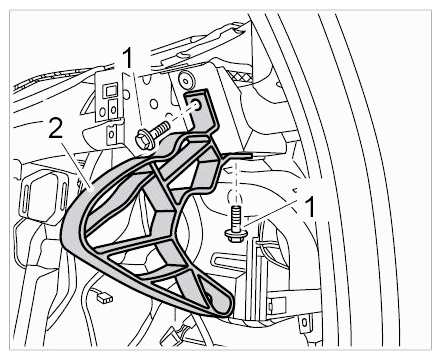

5. Unscrew fastening screw -1-  on bracket for heater housing -2-  .
   Fig 6: Identifying Housing Bracket And Fastening Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Undo fastening nuts -1-  close to the plenum panel.
   Fig 7: Identifying Plenum Panel Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

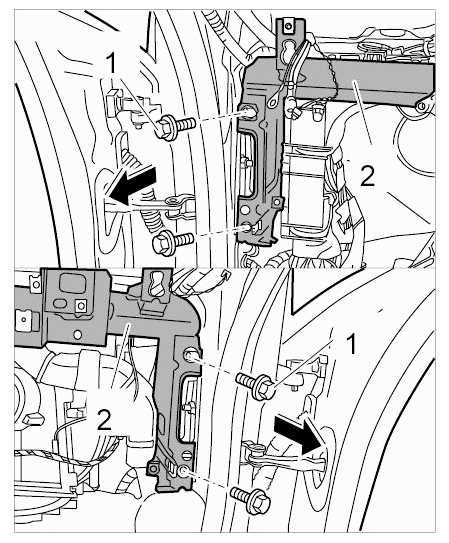

7. Unscrew fastening screws at the left and right -1-  on the dashboard support -2-  .
   Fig 8: Releasing Dashboard Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

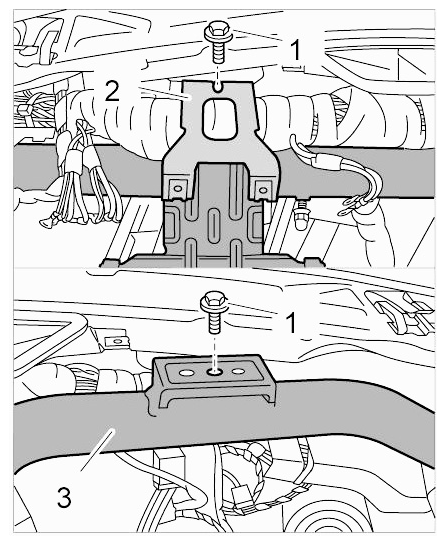

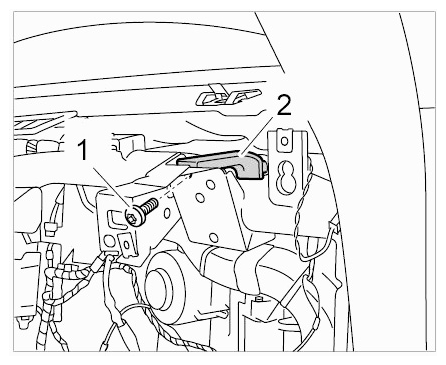

8. Unscrew left fastening screw -1-  and remove bracket -2-  .
   Fig 9: Identifying Bracket And Left Fastening Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Unscrew right fastening screw -1-  and pull dashboard support -3-  out slightly.
10. Unclip cable guide -1-  on left of dashboard support using a screwdriver.
    Fig 10: Disconnecting Cable Guide From Left Of Dashboard Support

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

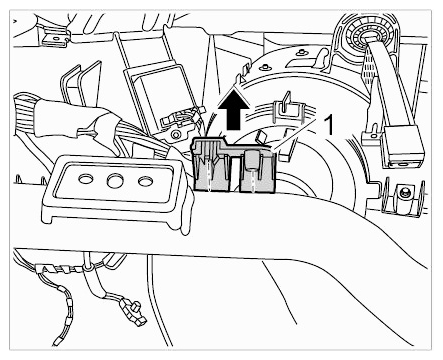

11. Unclip cable guide -1-  on dashboard support from below -Inset-  .
    Fig 11: Disconnecting Cable Guide From Dashboard Support

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Unclip cable guide -1-  at the back of the dashboard support using a screwdriver.
    Fig 12: Disconnecting Cable Guide From Back Of Dashboard Support

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

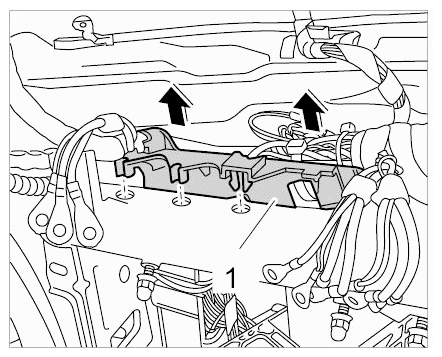

13. Unclip wire harness with fixing clip -1, 2-  on dashboard support.
    Fig 13: Disconnecting Wire Harness And Fixing Clip From Dashboard Support

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Unclip cable guide -1-  on right of dashboard support using a screwdriver.
    Fig 14: Disconnecting Cable Guide From Right Of Dashboard Support

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

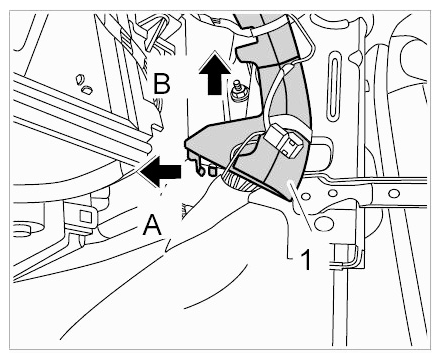

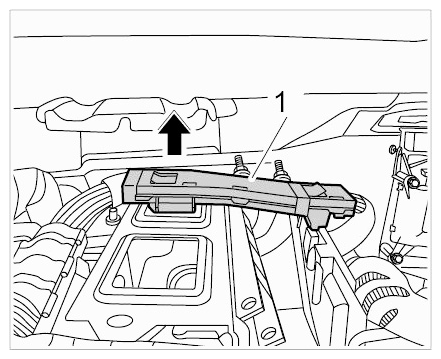

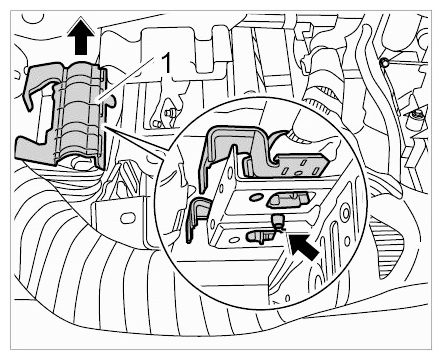

15. Release locking lug -Arrow A-  and unclip cable guide -1-  on bottom right of dashboard support in an upward direction -Arrow B-  .
    Fig 15: Disconnecting Cable Guide

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    When removing the dashboard support, make sure that wires or plug connections are not damaged.

16. Get another person to help you remove the dashboard support carefully in an upward direction.
