Installing Dashboard Support

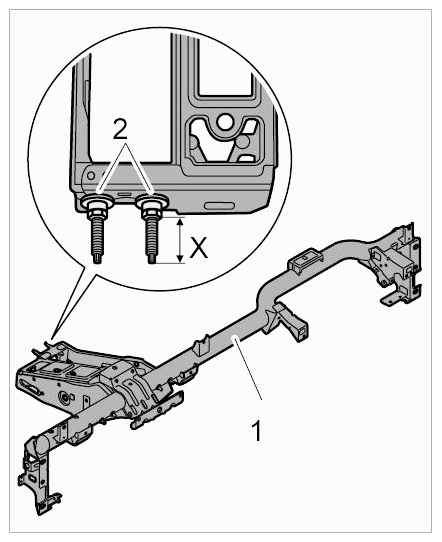

Screw on nut for tolerance compensation -2- on dashboard support -1- to the dimension -X= 35 mm- .

Fig 1: Identifying Dashboard Support And Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When positioning the dashboard support, make sure that wires or plug connections are not jammed.
Get another person to help you position the dashboard support in such a way that the wire harnesses can be clipped in.
Align and route wire harness and plug connections.

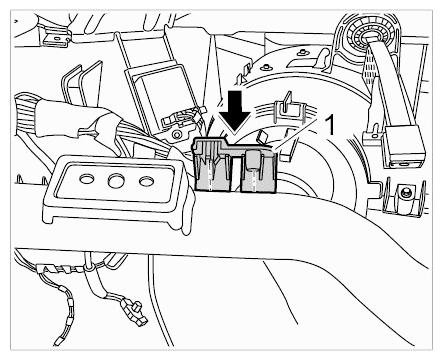

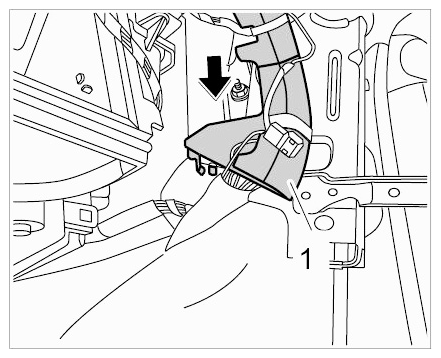

Clip in cable guide -1- at the bottom right of the dashboard support.

Fig 2: Installing Cable Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

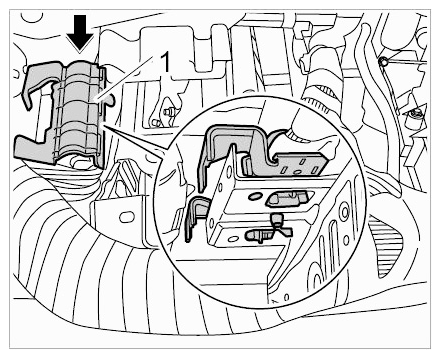

Clip in cable guide -1- at the right of the dashboard support.

Fig 3: Installing Cable Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

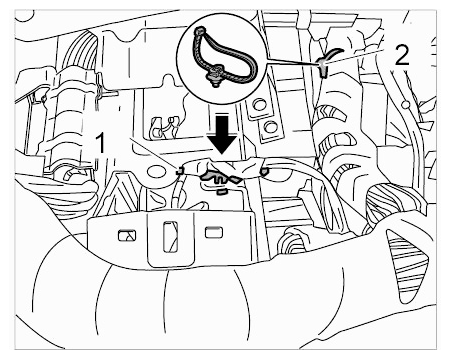

Clip wire harness onto dashboard support with a fixing clip -1, 2- .

Fig 4: Installing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

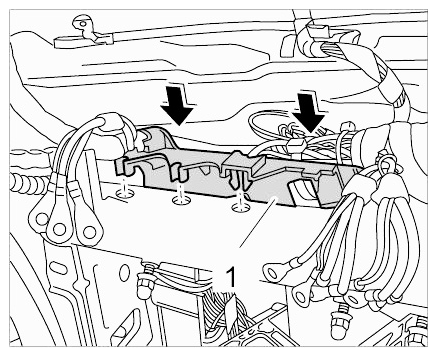

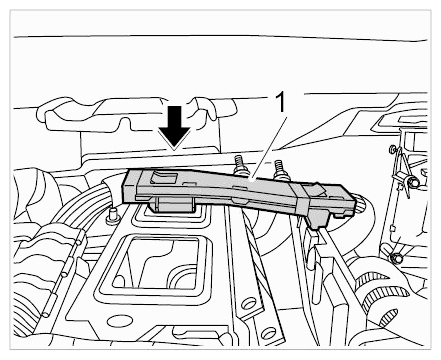

Clip in cable guide -1- at the back of the dashboard support.

Fig 5: Installing Cable Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in cable guide -1- at the left of the dashboard support.

Fig 6: Installing Cable Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in cable guide -1- at the top left of the dashboard support.

Fig 7: Installing Cable Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before securing the dashboard support, make sure that all lines and plug connections are routed correctly.

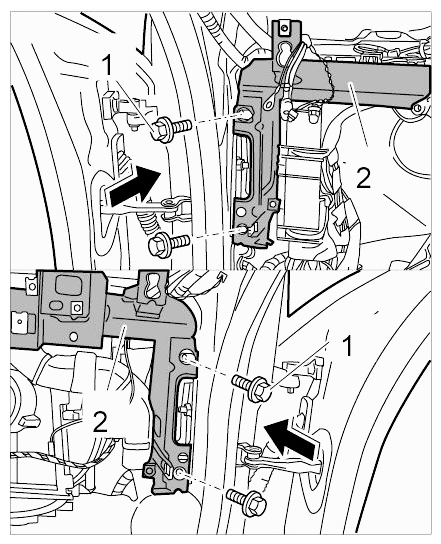

Fully position dashboard support -2- and screw fastening screws in by hand at the left and right -1- .

Fig 8: Securing Dashboard Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Align dashboard support and tighten fastening screws at the left and right -1- . → Tightening torque: 23 Nm (17 ftlb.)

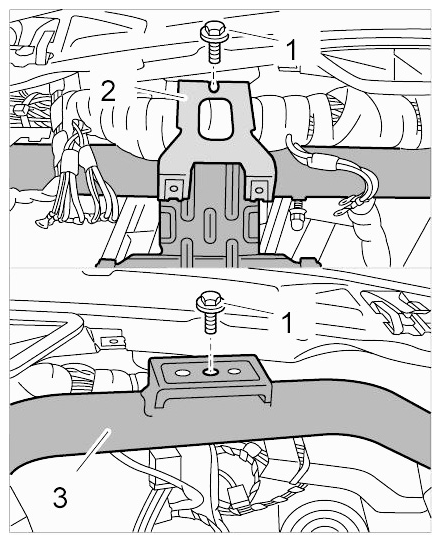

Secure dashboard support -3- at the right with the fastening screw -1- . → Tightening torque: 9.7 Nm (7.5 ftlb.)

Fig 9: Identifying Dashboard Support, Left And Right Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position bracket -2- and secure with the fastening screw -1- . → Tightening torque: 9.7 Nm (7.5 ftlb.)

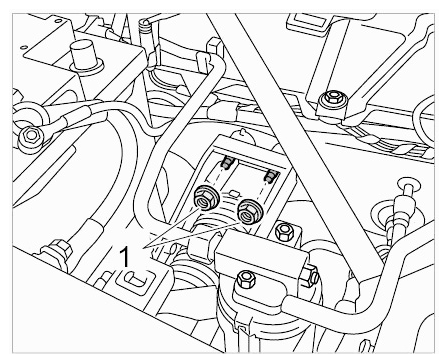

Tighten fastening nuts -1- close to the plenum panel. → Tightening torque: 23 Nm (17 ftlb.)

Fig 10: Identifying Dashboard Support And Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

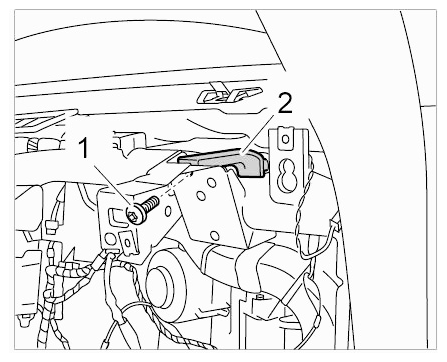

Tighten fastening screw -1- on bracket for heater housing -2- . → Tightening torque: 3.5 Nm (2.5 ftlb.)

Fig 11: Identifying Housing Bracket And Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

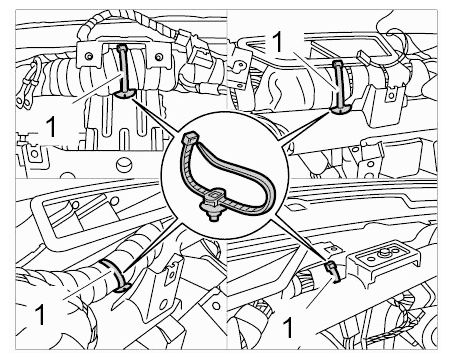

Secure main wire harness using new tie-wraps -1- .

Fig 12: Securing Main Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

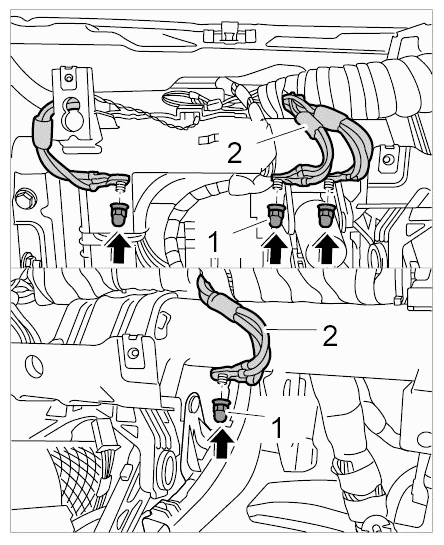

Fit ground straps -2- and secure in place with fastening nuts -1- . → Tightening torque: 9.7 Nm (7.5 ftlb.)

Fig 13: Fastening Ground Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

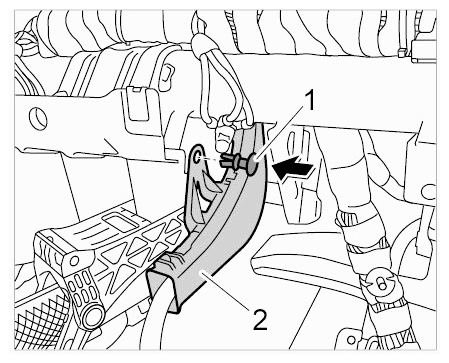

Position length compensation -2- on dashboard support and secure in place with the fixing clip -1- .

Fig 14: Identifying Dashboard Fixing Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for USA/Canada version vehicles

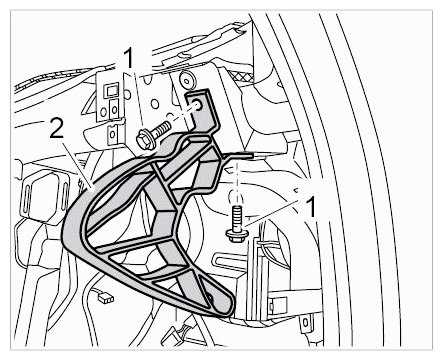

Position knee protector -2- on dashboard support and secure in place with fastening screws -1- . → Tightening torque: 9.7 Nm (7.5 ftlb.)

Fig 15: Identifying Knee Protector And Fastening Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
