Removing Cowl Panel Frame Deformation Element

→ The deformation elements must not be repaired.

→ Replace the deformation elements in the event of visible damage or pressure marks.

1. Unclip electric line -1-  (-Arrows A-  ).

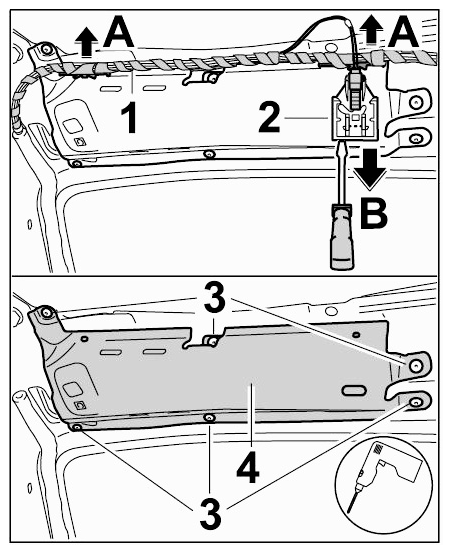

   Fig 1: Removing Cowl Panel Frame Deformation Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unclip sun visor plate -2-  using a screwdriver -Arrow B-  .
3. Drill out blind rivets -3-  with a 4-mm drill and remove the deformation element -4-  .
