Removing C-Pillar Deformation Element

→ The deformation elements must not be repaired.

→ Replace the deformation elements in the event of visible damage or pressure marks.

1. Drill out blind rivets -1-  with a 4-mm drill and remove the deformation element -2-  .

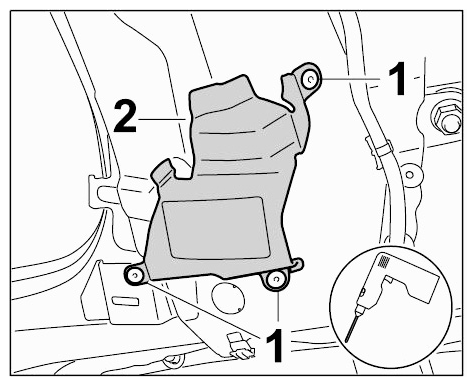

   Fig 1: Identifying Blind Rivet And Deformation Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
