Removing A-Pillar Deformation Element

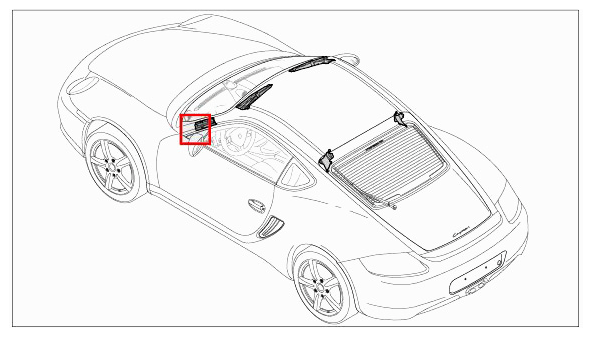

Fig 1: Deformation Element Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ The deformation elements must not be repaired.

→ Replace the deformation elements in the event of visible damage or pressure marks.

1. Release electric line -1-  upwards slightly -Arrow-  .

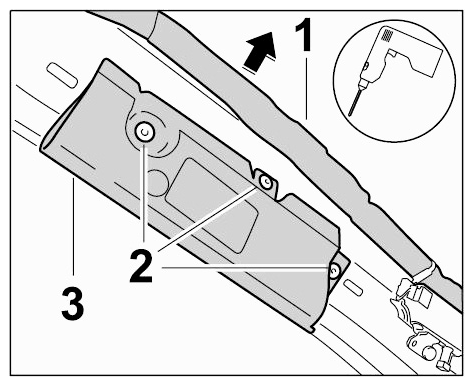

   Fig 2: Removing A-Pillar Deformation Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Drill out blind rivets -2-  with a 4-mm drill and remove the deformation element -3-  .
