Installing Deformation Element: Overview

→ Deformation elements cannot be repaired.

→ The deformation elements must be replaced in the event of visible damage or pressure marks.

1. Position deformation element -A-  on inner cowl panel and rivet down using blind rivets -1-  .

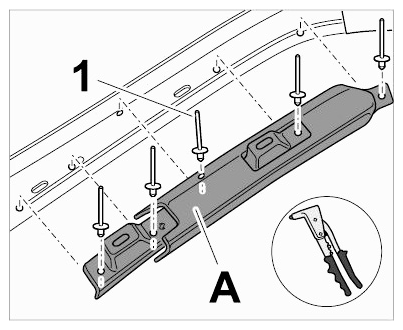

   Fig 1: Identifying Deformation Element And Blind Rivets

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press in electric line on cowl panel frame.
