Installing Cowl Panel Frame Deformation Element

  1. Position deformation element -4-  on the top of the cowl panel frame and rivet down using blind rivets -3-  .

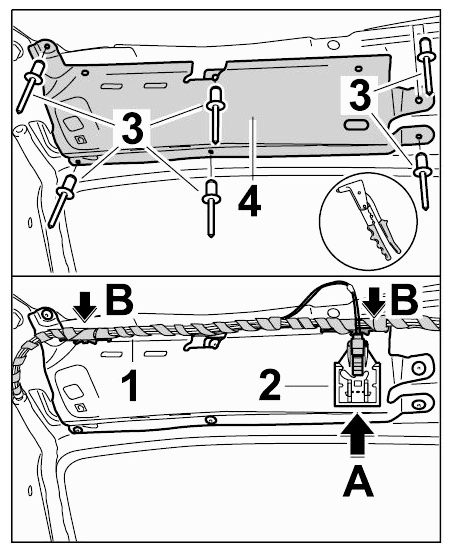

    Fig 1: Identifying Deformation Element And Blind Rivet
    G09588999Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip in sun visor plate -2- (-Arrow A-)  .
  3. Clip in electric line -1- (-Arrows B-)  .
