Installing C-Pillar Deformation Element

  1. Position deformation element -2-  on the roof frame and rivet down using blind rivets -1-  .

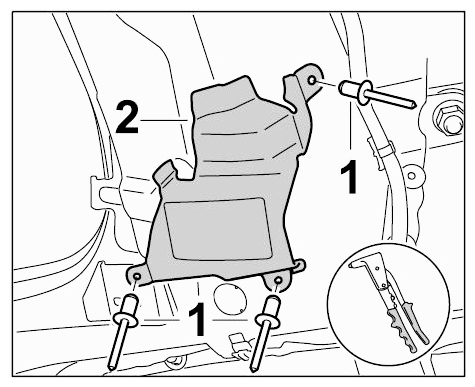

Fig 1: Installing C-Pillar Deformation Element
G09588998Courtesy of PORSCHE CARS NORTH AMERICA, INC.
