Installing A-Pillar Deformation Element

  1. Position deformation element -3-  on the side of the cowl panel frame and rivet down using blind rivets -2-  .

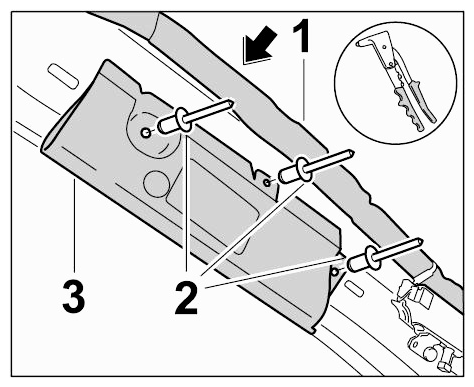

    Fig 1: Installing A-Pillar Deformation Element
    G09589000Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Stick on wire harness -1- (-Arrow-)  .
