Preparing Connection Areas Of Body For Installing Outer Hinge Pillar

Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C, D, E- using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

Fig 1: Identifying Body Outer Hinge Pillar Connection Areas (A, B, C, D And E)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

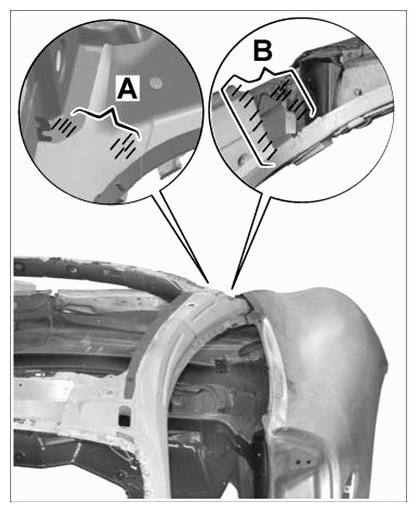

Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A- and -B- using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

Fig 2: Identifying Body Outer Hinge Pillar Connection Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Keep bonding areas clean and free of grease and do not coat with zinc powder paint.
Coat spot-weld flange areas with zinc powder paint
1. 3.1. Coat spot-weld flange areas with zinc powder paint.
Prepare bonded flanges

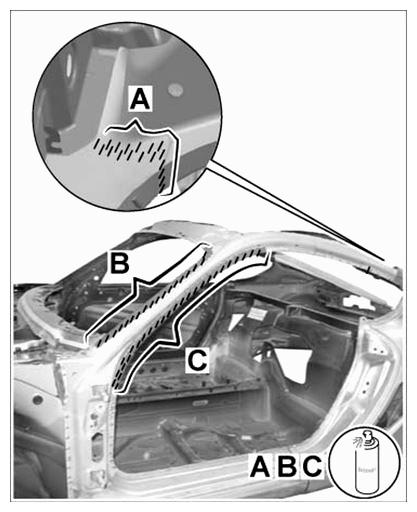

1. 4.1. Sand and clean the bonded flanges in the marked areas -A, B, C- .
  See: Working with adhesive → Information On The Use Of Structural Adhesives In Vehicle Construction

  Fig 3: Identifying Bonded Flanges Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Prime bonded flanges

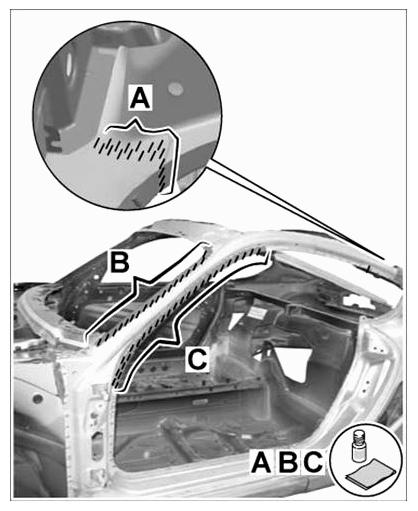

1. 5.1. Prime bonded flanges on the body in the marked areas -A, B, C- .
  See Working with primer → Handling Primer

  Fig 4: Identifying Body Marked Area On Prime Bonded Flanges
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
