Removing Windscreen Frame

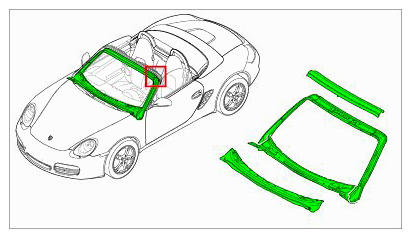

Fig 1: Windscreen Frame Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove hinge pillar reinforcement at the left and right. → Removing Hinge Pillar Reinforcement
Milling off spotwelds
1. 2.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter.

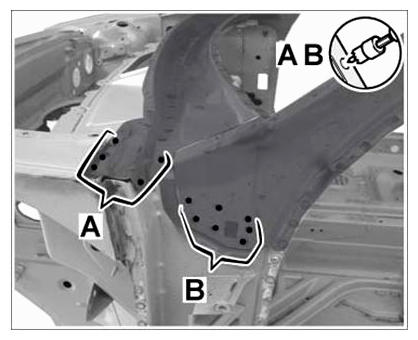

Fig 2: Identifying Milling Off Spotwelds Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 3.1. Mill off spotwelds in area -A- using a spotweld cutter.

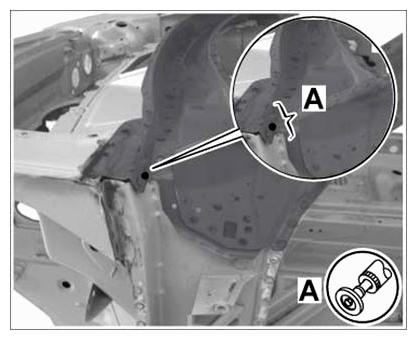

Fig 3: Identifying Milling Off Spotwelds Areas (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds at the left and right
1. 4.1. Mill off spotwelds at the left and right in areas -A- and -B- using a spotweld cutter (2 plate thicknesses).
Fig 4: Identifying Spotwelds Cutting Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separating spotwelds at the left and right
1. 5.1. Separate spotwelds at the left and right in area -A- using a parting grinder.
Fig 5: Identifying Spotwelds Separating Areas (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
