Preparing Connection Areas Of The Body For Installing The Windscreen Frame: Overview

Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked area -A- using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

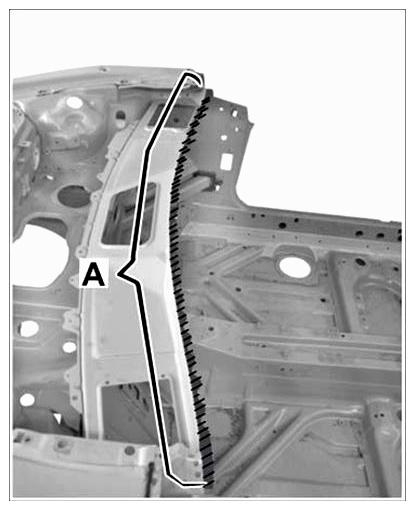

Fig 1: Identifying Windscreen Frame Connection Areas On Body (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean undersealing, adhesive residue and paint off the body connecting flanges at the left and right in the marked areas -A- and -B- using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

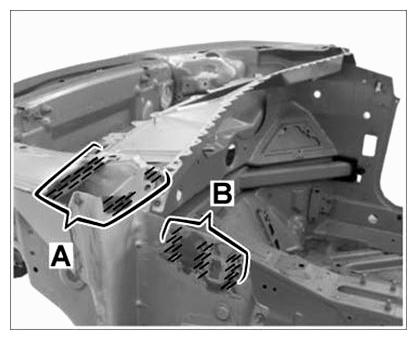

Fig 2: Identifying Windscreen Frame Connection Areas On Body (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coating spot-weld flange areas with zinc powder paint
1. 3.1. Coat all spot-weld flange areas with zinc powder paint.
