Removing Flow Duct On The Right

Remove coolant reservoir. → REMOVING COOLANT TANK
Remove engine-compartment blower. → REMOVAL
Remove air guide and air scoop.
1. 3.1. Unscrew fastening screws -1- and remove air guide -2- .
2. 3.2. Unscrew fastening screws -1- and remove air scoop -3- .
3. 3.3. Check fastening nut -4- and replace if necessary.

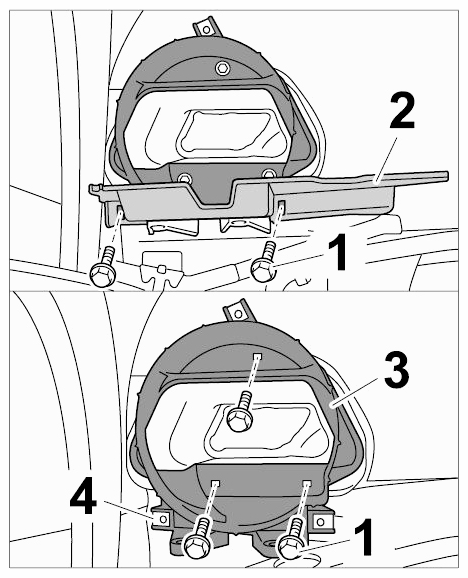

  Fig 1: Removing Air Guide And Scoop
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect plug connections.
1. 4.1. Pull off temperature sensor -1- and set it aside.
2. 4.2. Pull off plug connection for oil pressure switch -2- .

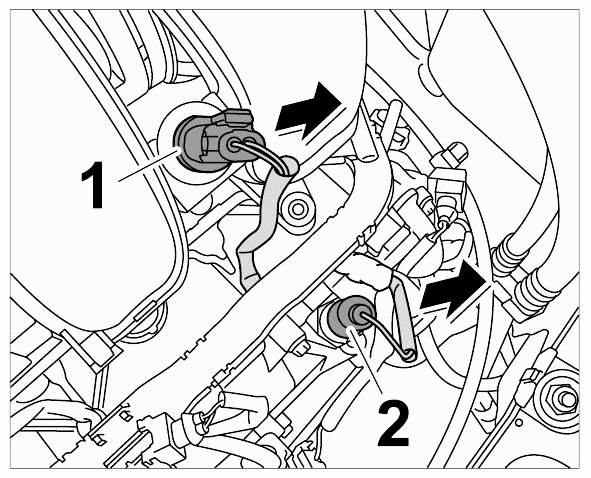

  Fig 2: Removing Oil Pressure Switch Plug Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove flow duct.
1. 5.1. Pull flow duct up and off.

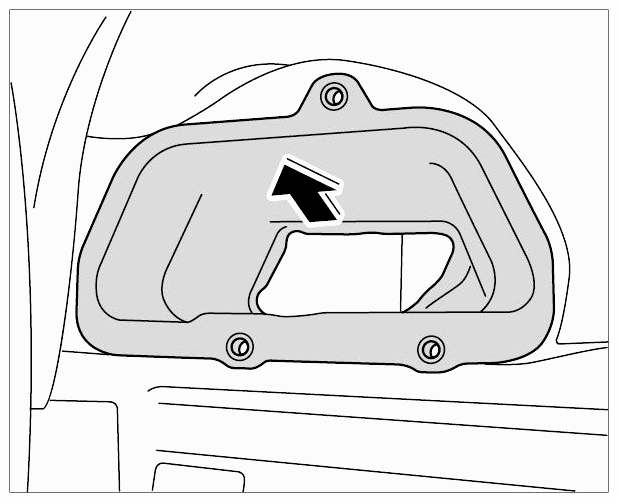

  Fig 3: Removing Flow Duct
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
