Removing Coolant Tank

1. 1.1. Pull off cable plug -2-  on engine coolant level sensor.
2. 1.2. Remove screw (M8 x 16) -3-  .
3. 1.3. Loosen spring band clamp -4-  using spring band clamp pliers and slide it back on the coolant hose.
4. 1.4. Pull off coolant hose -5-  .

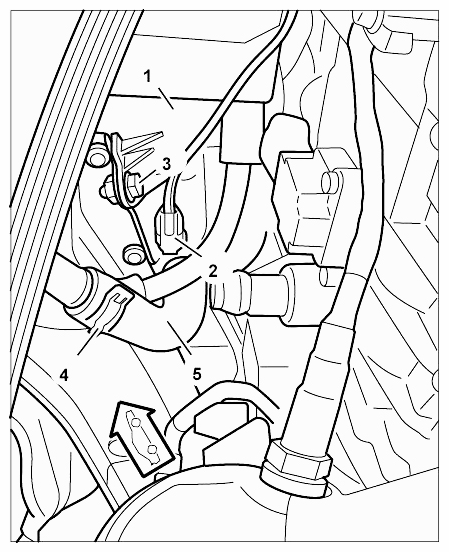

Fig 1: Identifying Coolant Tank, Spring Band Clamp, Screw And Breather Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Loosen spring band clamp -2-  using spring band clamp pliers and slide it back on the breather hose -3-  .
2. 2.2. Pull off breather hose -3-  .
3. 2.3. Loosen spring band clamp -4-  using spring band clamp pliers and slide it back on the breather hose -5-  .
4. 2.4. Pull off breather hose -5-  .
5. 2.5. Loosen spring band clamp -6-  using spring band clamp pliers and slide it back on the coolant hose -7-  .
6. 2.6. Pull off coolant hose -7-  .
7. 2.7. Loosen quick-lock coupling -8-  and slide vent line back.

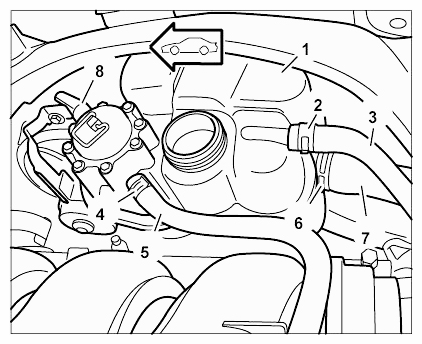

Fig 2: Identifying Coolant Tank, Breather Hose, Quick-Lock Coupling And Coolant Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

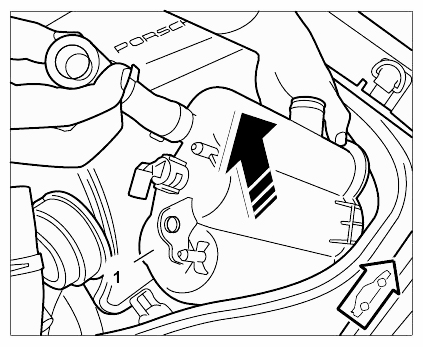

Fig 3: Removing Engine Compartment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
