Installing Inner Left Air Guide

  1. Install inner left air guide.
    1. 1.1. Position inner air guide -2-  between the support frame -1-  and body -Arrow A-  .
    2. 1.2. Secure inner air guide -2-  (-Arrow B-  ) and check that it is seated properly (water drain).

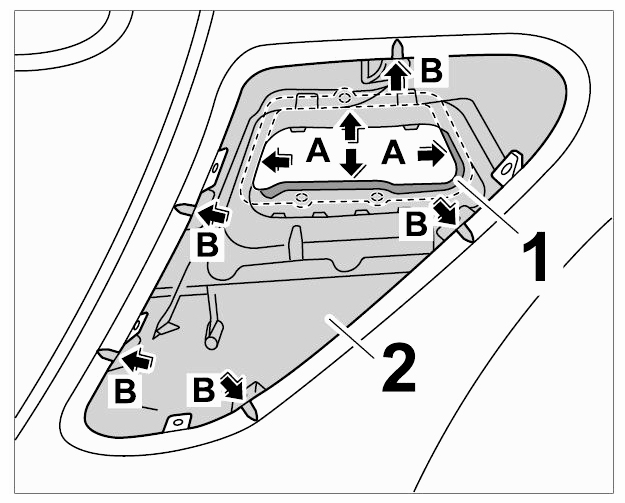

      Fig 1: Installing Inner Air Guide
      G09591045Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure support frame at the top.
    1. 2.1. Secure support frame with the fastening screw -2-  . Tightening torque → Tightening torque: 9.7 Nm (7.5 ftlb.)

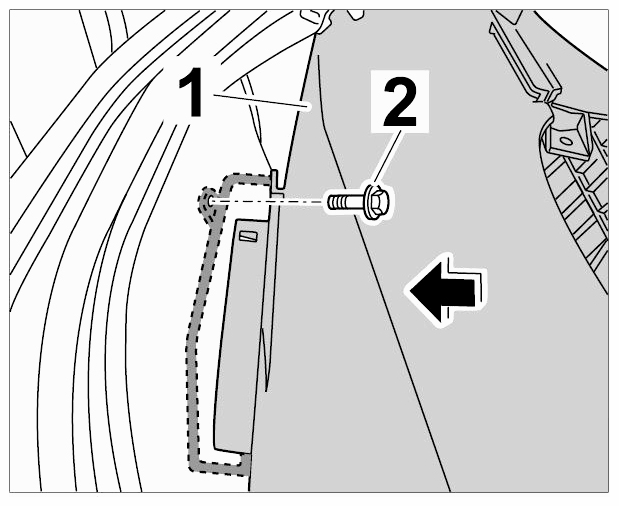

      Fig 2: Securing Support Frame
      G09591046Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Secure air cleaner housing at the top.
    1. 3.1. Position air cleaner housing -1-  onto body -Arrow A-  until the fixing clip -3-  latches into place -Arrow B-  .
    2. 3.2. Secure air cleaner housing -1-  with the fastening screw -2-  . Tightening torque → Tightening torque: 9.7 Nm (7.5 ftlb.)

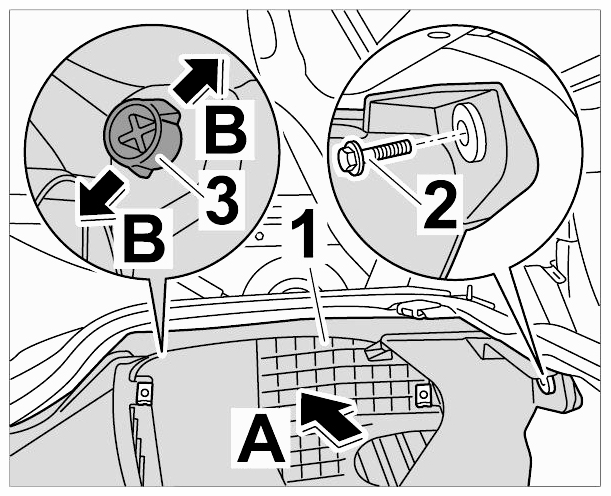

      Fig 3: Securing Air Cleaner Housing
      G09591047Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Secure air cleaner housing at the bottom.
    1. 4.1. Lift the vehicle.
    2. 4.2. Secure air cleaner housing -1-  at the bottom with the fastening screw -2-  . Tightening torque → Tightening torque: 9.7 Nm (7.5 ftlb.)
    3. 4.3. Secure support frame -4-  at the bottom with the fastening screw -3-  . Tightening torque → Tightening torque: 9.7 Nm (7.5 ftlb.)
    4. 4.4. Lower the vehicle.

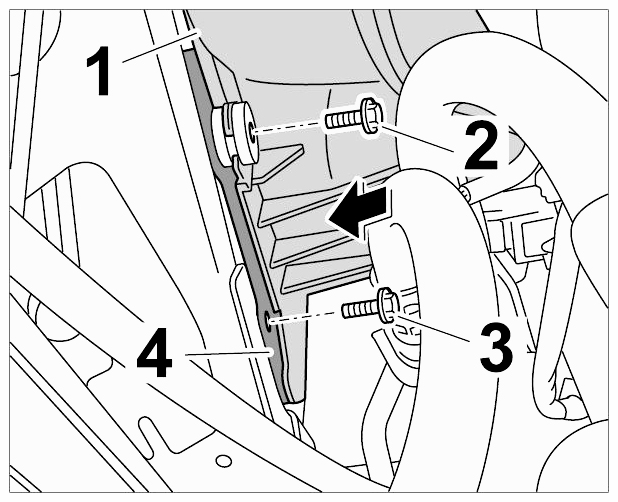

      Fig 4: Securing Air Cleaner Housing
      G09591048Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Install air flow sensor. → INSTALLING AIR FLOW SENSOR
  6. Install left intake-air distributor. → INSTALLING INTAKE-AIR DISTRIBUTOR
  7. Install air-cleaner element. → INSTALLING AIR-CLEANER ELEMENT
  8. Install intake-air pipe.
    1. 8.1. Position intake-air pipe -1-  on the air cleaner housing and press in until it clicks into place.

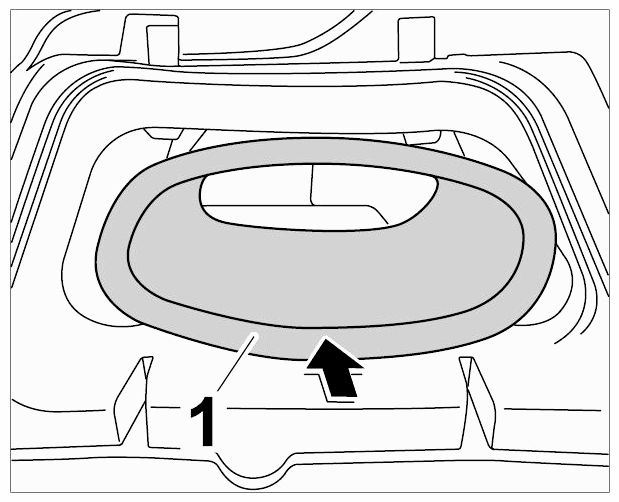

      Fig 5: Installing Intake-Air Pipe
      G09591049Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Install reinforcement.
    1. 9.1. Press reinforcement in.

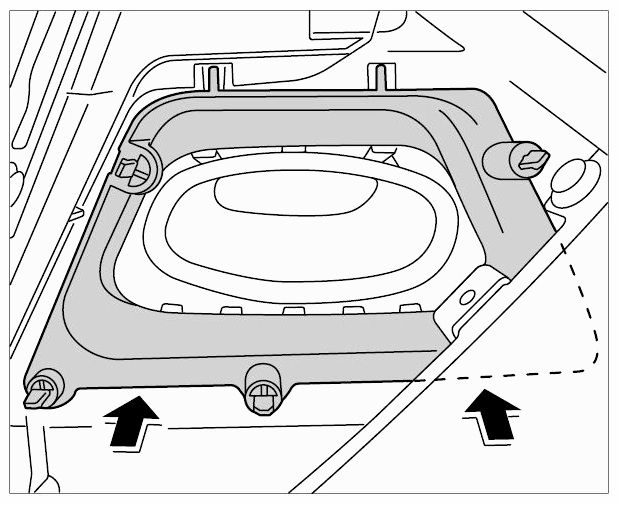

      Fig 6: Installing Reinforcement
      G09591050Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Install impact protection element.
    1. 10.1. Position impact protection element until the locking lugs engage.

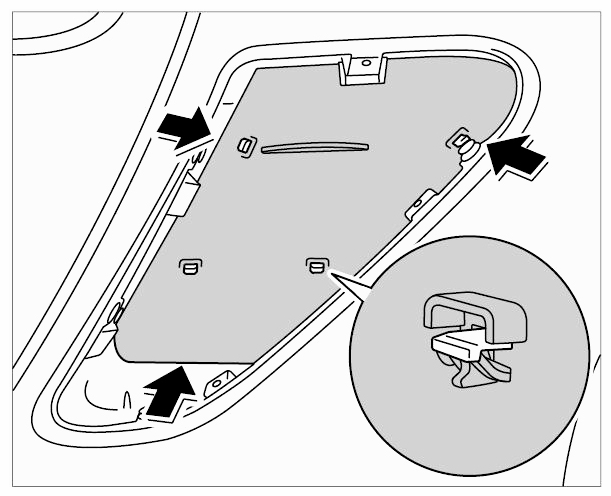

      Fig 7: Installing Impact Protection Element
      G09591051Courtesy of PORSCHE CARS NORTH AMERICA, INC.
