Installing Air-Cleaner Element

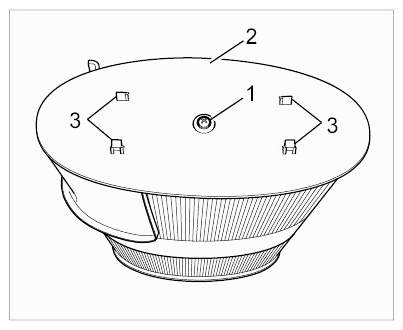

Place holder -2- in position and screw in screw -1- (only necessary when installing a new air-cleaner element).

Fig 1: Identifying Air-Cleaner Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

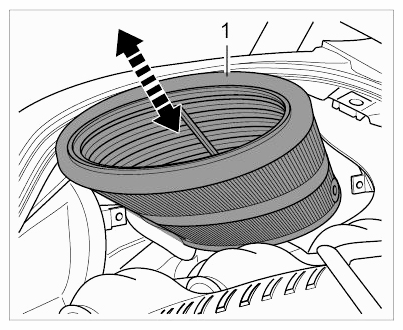

Insert air-cleaner element -1- into the air-cleaner housing.

Fig 2: Removing/Installing Air-Cleaner Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

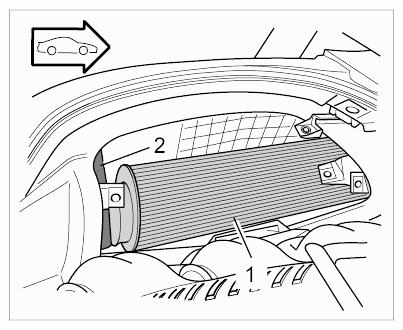

Place air-cleaner element -1- on the flange -2- .

Fig 3: Identifying Air-Cleaner Element Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

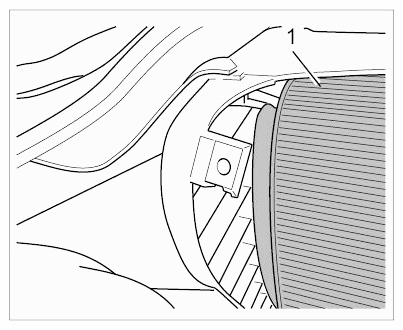

- Air-cleaner element on flange

  Fig 4: Identifying Air-Cleaner Element Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screw for air-cleaner element -1- .

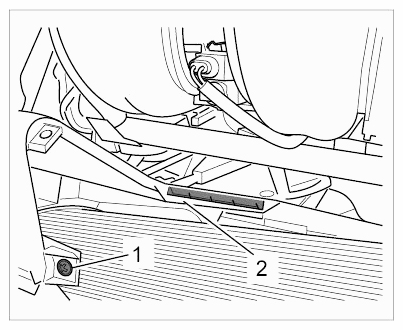

Insert retaining lug of air cleaner housing cover into the groove -2- and fit air cleaner housing cover.

Fig 5: Identifying Air Cleaner Housing Groove
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

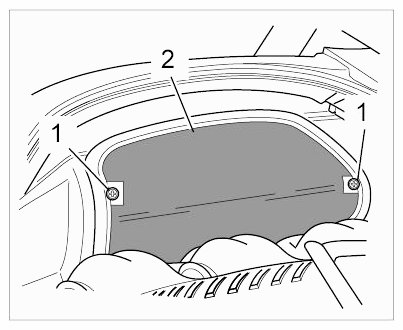

Screw in screws -1- .

Fig 6: Identifying Air Cleaner Housing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
