Removing Padding For 1/3 Split Folding Rear Seat

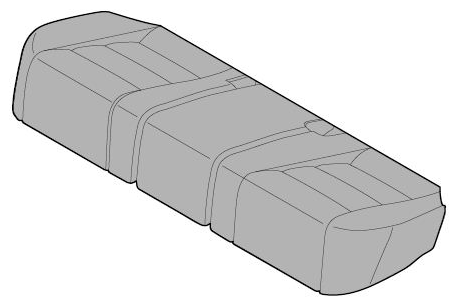

Fig 1: Identifying 1/3 Split Folding Rear Seat Pad

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

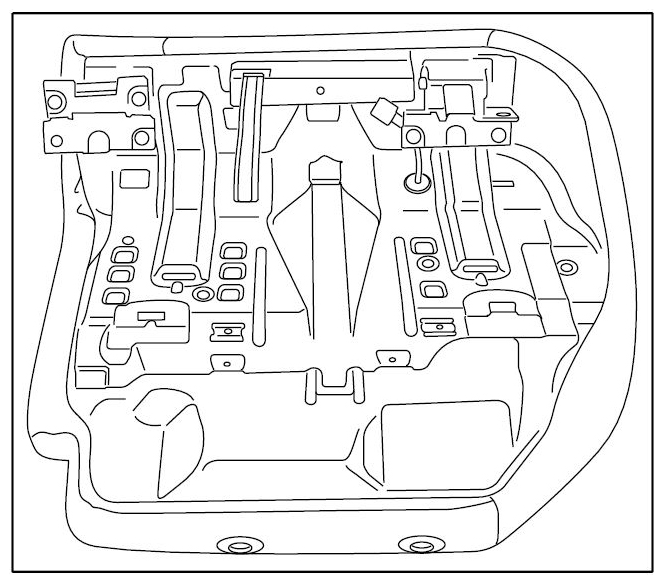

Fig 2: Identifying 1/3 Split Folding Rear Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove rear seat. → Removing back seat

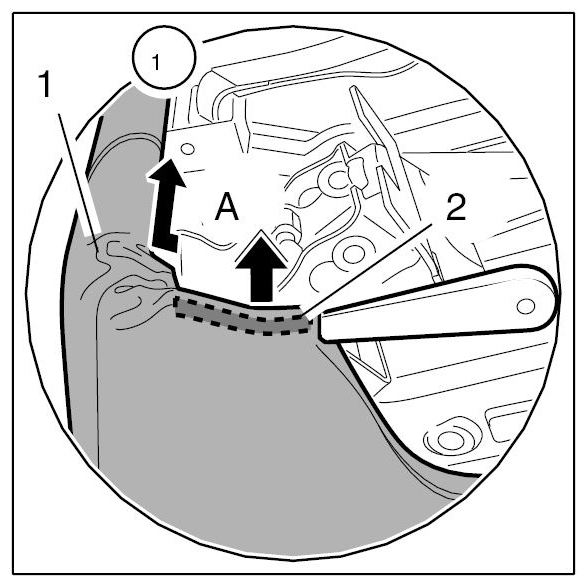

2. Lever out seal -2-  on cover for rear seat -1-  by inserting a plastic wedge into the front right corner -Arrow A-  .
   Fig 3: Removing Rear Seat Seal Using Tool

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Pull piping -2-  of cover for rear seat -1-  out completely in direction of arrow.
   Fig 4: Pulling Piping Cover For Rear Seat

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

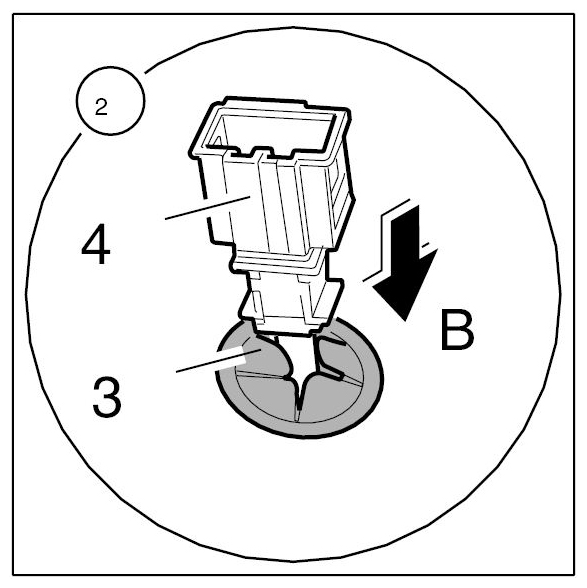

4. Release wire harness for seat heater (only for vehicles with seat heater): Press grommet -3-  with connector -4-  out of the seat frame -Arrow B-  .
   Fig 5: Releasing Wire Harness For Seat Heater

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

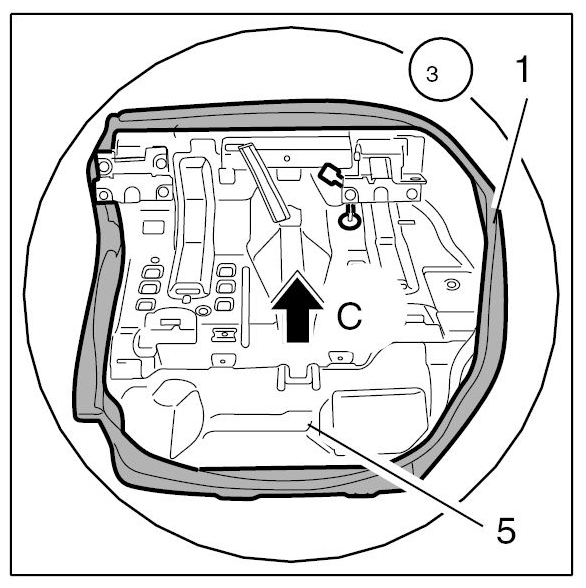

5. Remove padding: Remove seat frame -5-  from padding with cover -1- -Arrow C-  .
   Fig 6: Removing Seat Frame From Padding

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove cover for seat → Removing Cover For 1/3-Split Folding Rear Bench
