Removing Back Seat

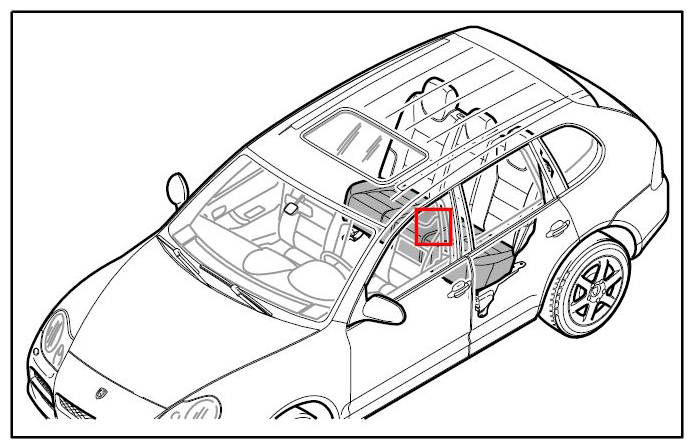

Fig 1: Identifying Back Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

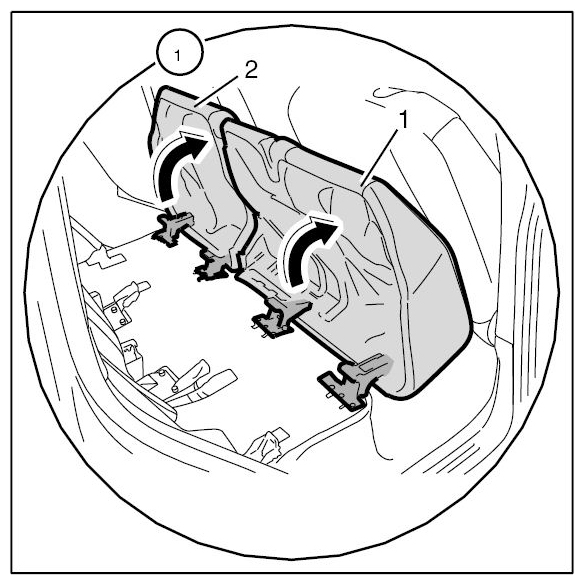

Unlock rear seats -1, 2- and fold up 90°.

Fig 2: Unlocking Rear Seats
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Only in vehicles with seat heater:

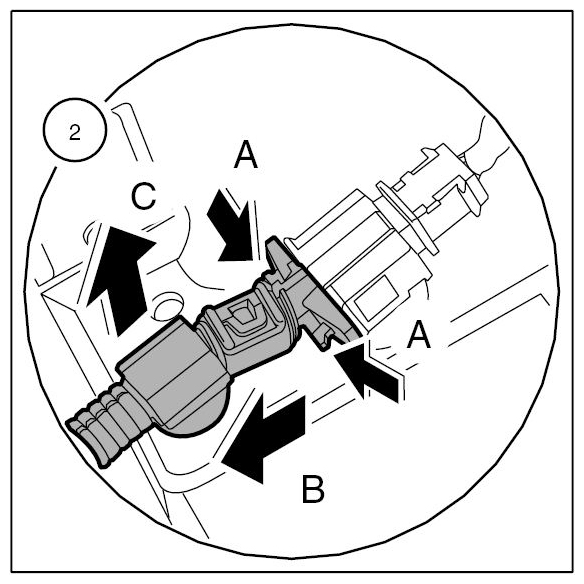

Release plug -Arrow A- and pull it off -Arrow B- .

Fig 3: Removing Seat Heater Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip the connector -Arrow C- .

Fig 4: Uncliping Seat Heater Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

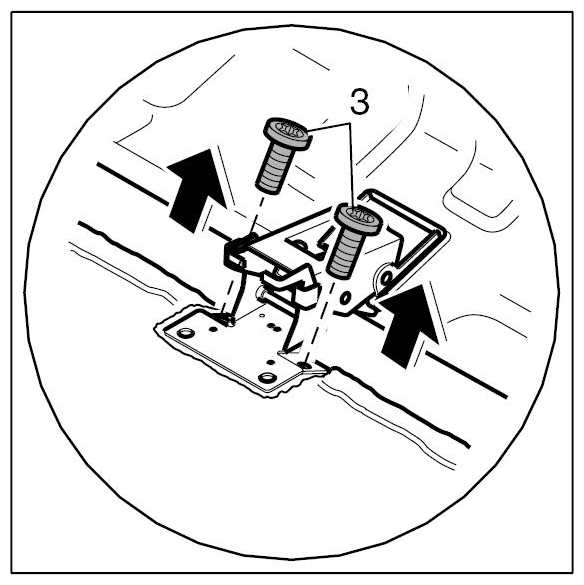

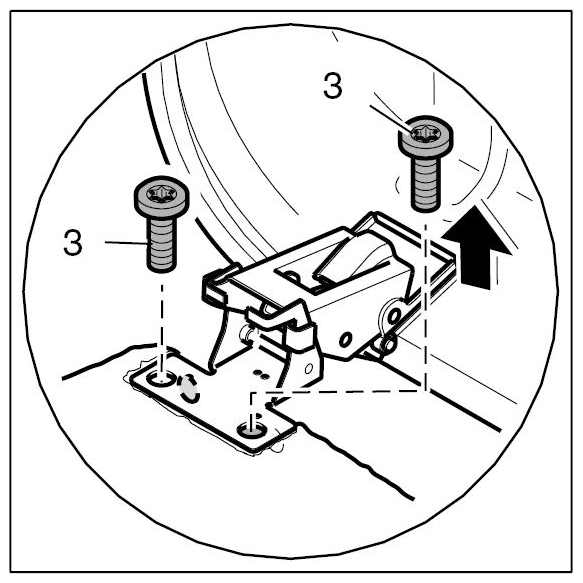

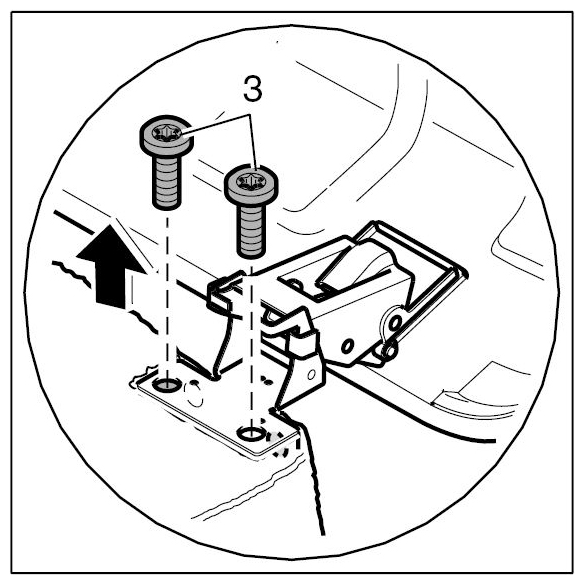

Unscrew fastening screws -3- , -3- and -3- .

Fig 5: Removing Seat Heater Fastening Screws (1 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 6: Removing Seat Heater Fastening Screws (2 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 7: Removing Seat Heater Fastening Screws (3 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear seats. .

Fig 8: Removing Rear Seats
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
