Installing Cowl Panel Cover

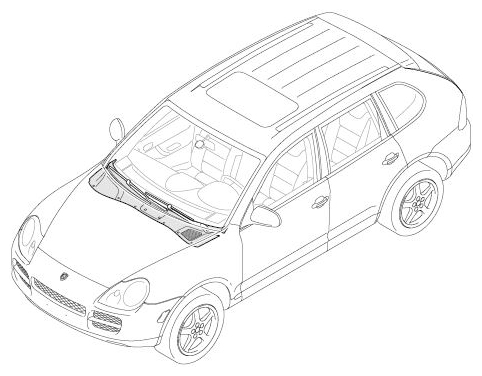

Fig 1: Identifying Cowl Panel Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

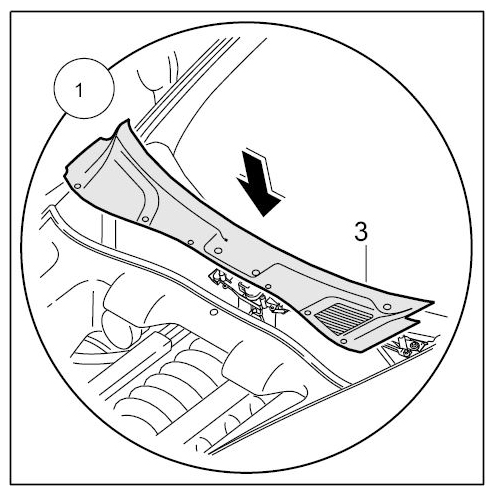

Positioning cowl panel cover
1. 1.1. Insert cowl panel cover -3- in the radiator tank and align.

  Fig 2: Inserting Cowl Panel Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

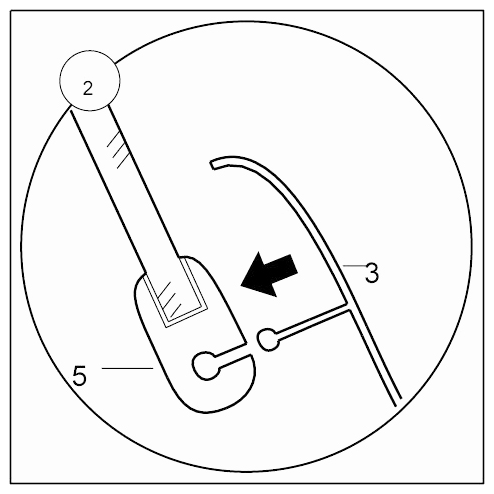

Engaging cowl panel cover
1. 2.1. Engage cowl panel cover lug -3- in the retaining strip on the windscreen -5- -arrow- .

  Fig 3: Engaging Cowl Panel Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

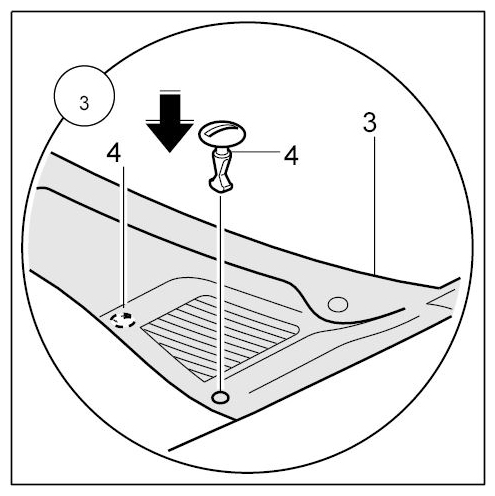

Engaging fastening clips
1. 3.1. Position fastening clips -4- as shown in the drawing and press into the support.

  Fig 4: Positioning Fastening Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 5: [Identifying Cowl Panel Cover Mark]
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

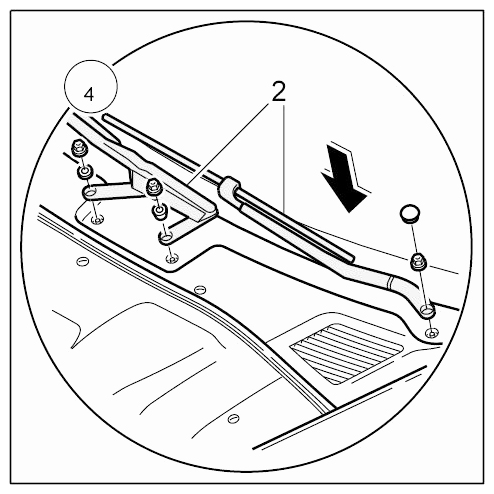

Installing wiper arms
1. 4.1. Install wiper arms -2- → Installing Wiper Arms .

  Fig 6: Installing Wiper Arms
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

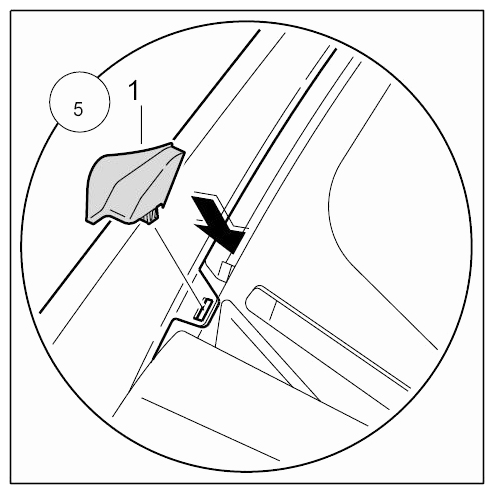

Installing side cover
1. 5.1. Clip side cover -1- onto A-post.

  Fig 7: Installing Side Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Closing bonnet
