Installing Wiper Arms
- Fit wiper arms on the wiper linkage.

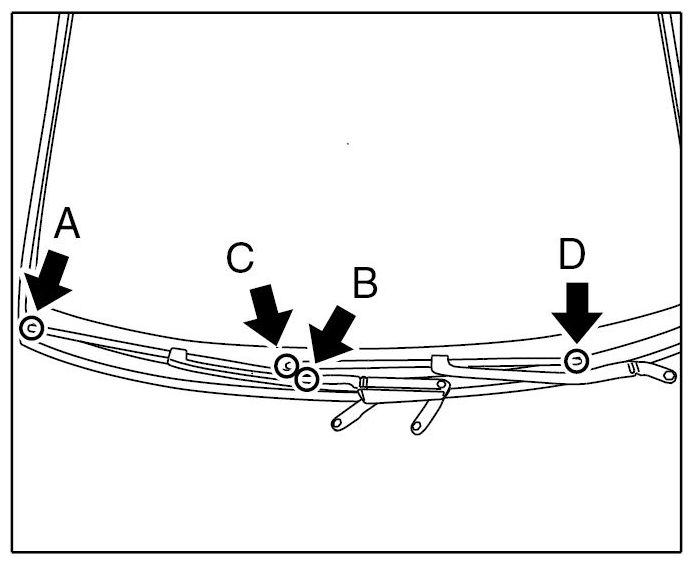

- The windscreen has specific points at which the wipers must be positioned.
- 2.1. Top priority is given to the wiper on the driver's side at points -C-
and -D-
.
- 2.2. Then position the wiper on the passenger's side at points -A-
and -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

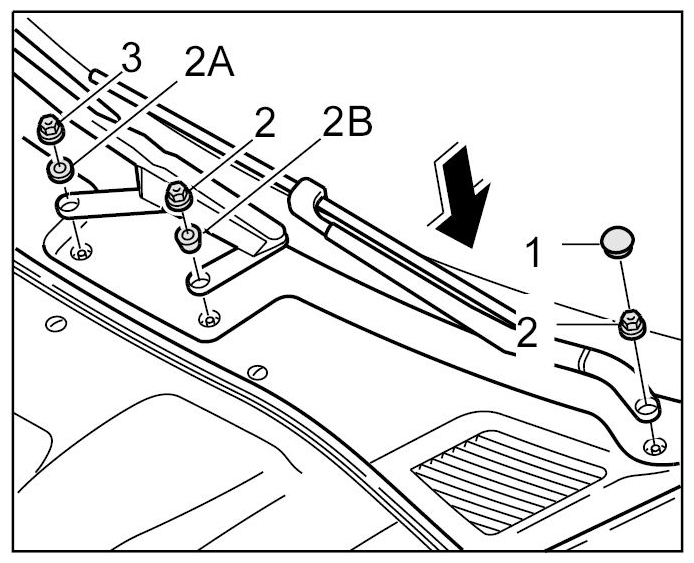

- Fit washer -2A
- and O-ring -2B
-.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Screw on and tighten fastening nut -2-
. → Tightening torque: 32 Nm (24 ftlb.)
- Screw on and tighten fastening nut -3-
. → Tightening torque: 18 Nm (13 ftlb.)
- Close the bonnet.
- Activate the one-touch wipe function and check the position of the wiper arms.
- Open the bonnet.
- Press on the cap -1-
.
