Preliminary Work

  1. Remove the timing-case cover at the top. → Removing timing-case cover  6
  2. Set crankshaft to compression TDC for cylinder 1 → Checking the timing .

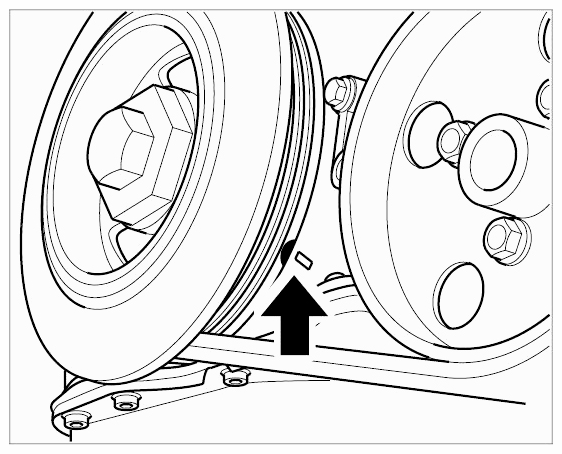

    Fig 1: Locating TDC Marking On Cylinder 1
    G09409240Courtesy of PORSCHE CARS NORTH AMERICA, INC.
