Installing Rear Side Member (Section)

→ Weld in the new part within 30 minutes.

→ Only apply MIG welds on the side member.

→ Do not butt-weld thick body panels (more than → Length: +1.5 mm  thick) without a welding gap during MIG welding.

→ To achieve the required welding quality, maintain the specified welding gap.

→ Do not grind down the welded seams.

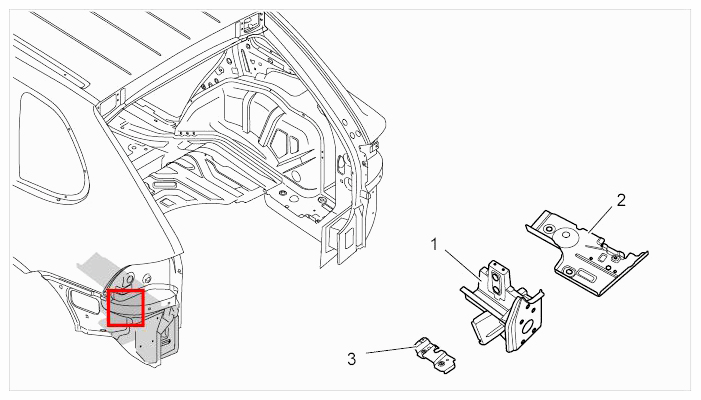

Fig 1: Identifying Installation Position Of Rear Side Member (Section)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Rear side member (section)
2. Floor section, left
3. Support

1. Fit side member to the body.

   Information

   • To fit the rear side member, the frame head (impact absorber mount) must be secured to the straightening set  .
   1. 1.1. Secure the frame head of the rear side member to the straightening set.
   2. 1.2. Fix the side member to the body using tensioning clamps.

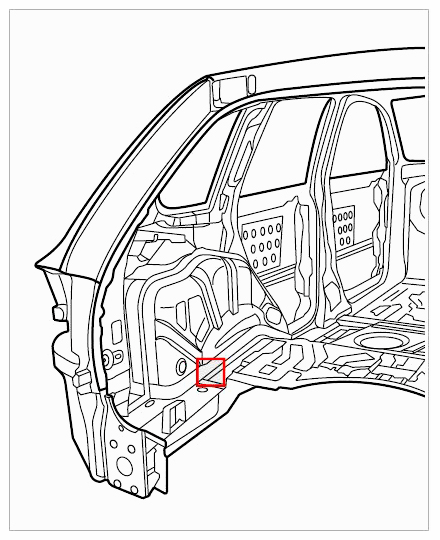

      Fig 2: Overview Of Side Member (Behind)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Weld side member on the inside and underneath using inert gas.
   1. 2.1. Use an inert-gas arc welder to weld the side member to the inside and underside of the carrier in areas -A-  .

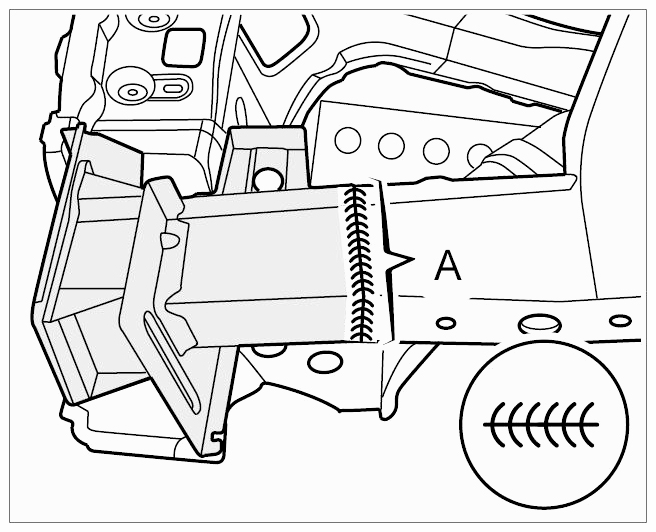

      Fig 3: Identifying Welded Joints On Inside And Underside Of Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

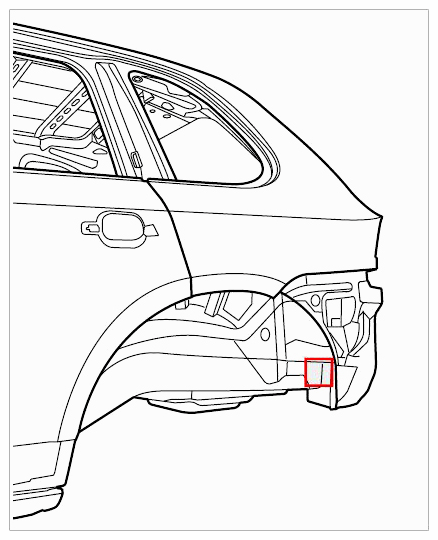

      Fig 4: Overview Of Side Member - Outside

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

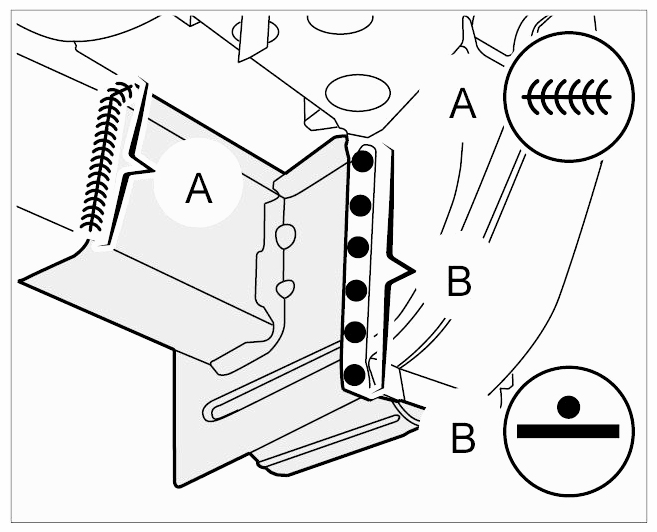

3. Welding in the outer side member.
   1. 3.1. Apply a full weld to secure the side member in area -A-  to the outside of the carrier using inert gas.
      Fig 5: Identifying Welded Joints On Outside Of Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 3.2. Resistance spot-weld the side member in area -B-  .
      Fig 6: Overview Of Side Member (Behind)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Grind down MIG seam on upper side member.

   Information

   Never grind MIG seams on load-bearing body parts. However, a partial flat-grind may be required for subsequent installation of body parts.

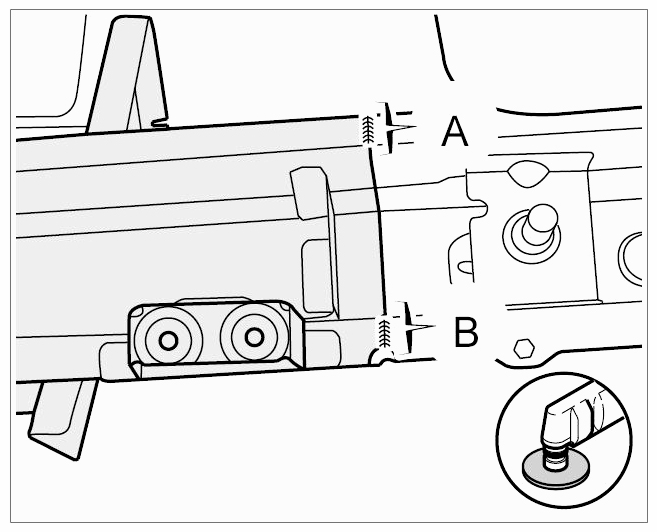

   1. 4.1. Grind down MIG seam in areas -A and B-  .

      The MIG seam on the upper side member must be ground down in order to accommodate the floor section.

      Fig 7: Grinding Down MIG Seam On Upper Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 8: Overview Of Side Member (Behind)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

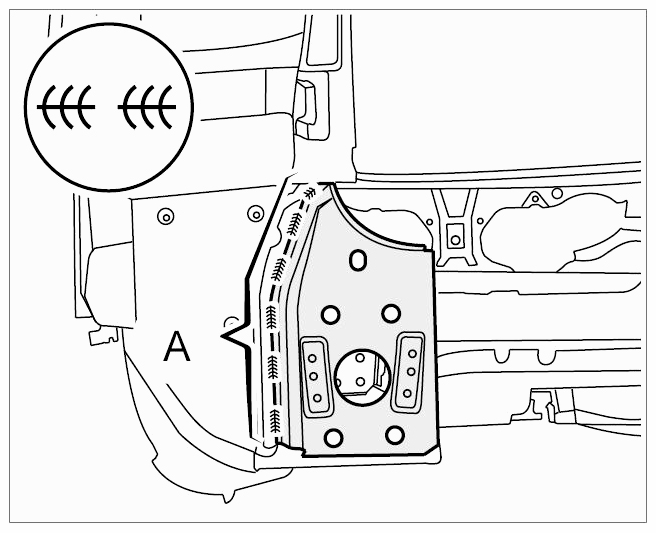

5. Weld in side member on the bottom of the D-pillar.
   1. 5.1. Weld side member in area -A-  using inert gas.
      Fig 9: Identifying Welded Joints On Rear Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

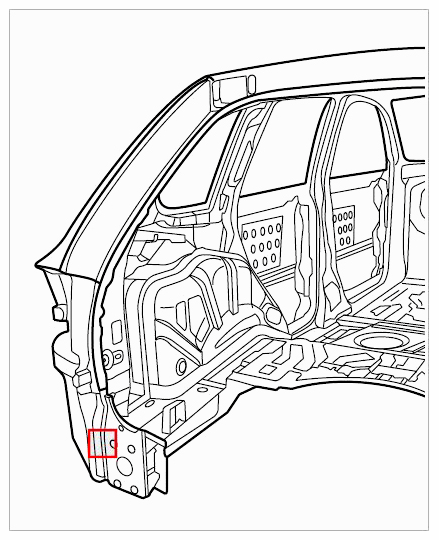

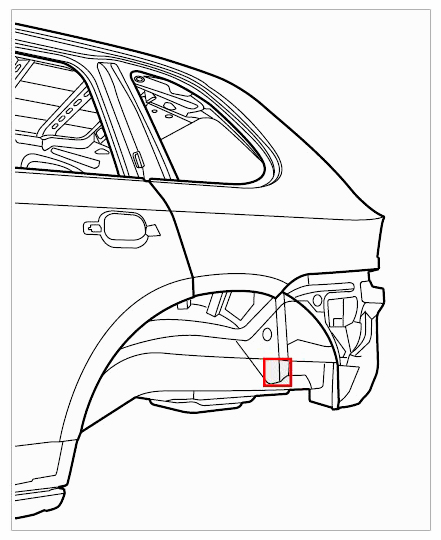

      Fig 10: Overview Of Side Member - Outside

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Fit the support on the body and weld it in.
   1. 6.1. Fix support in place on the side memberusing tensioning clamps.
   2. 6.2. Plug-weld the support in area -A-  using inert gas.

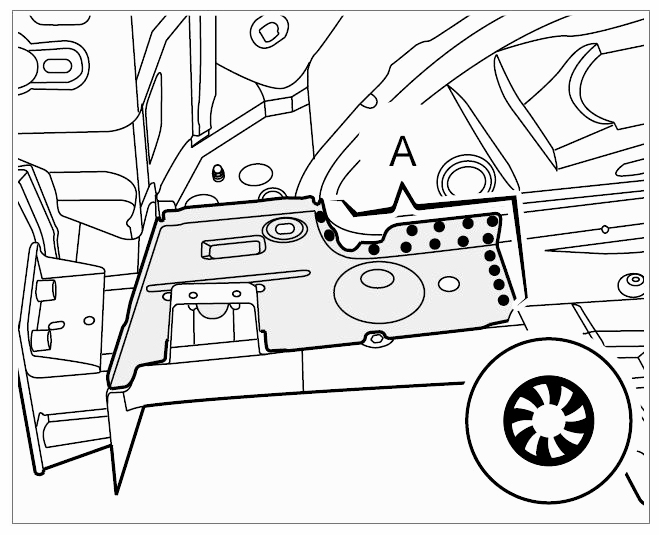

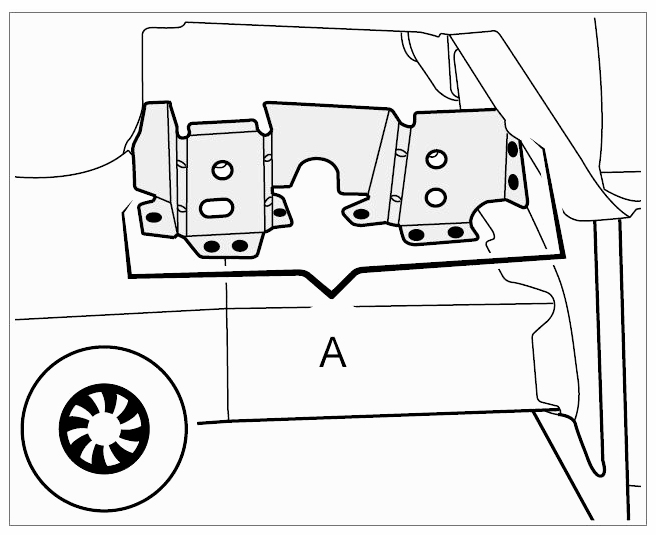

      Fig 11: Identifying Welded Joints On Support

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

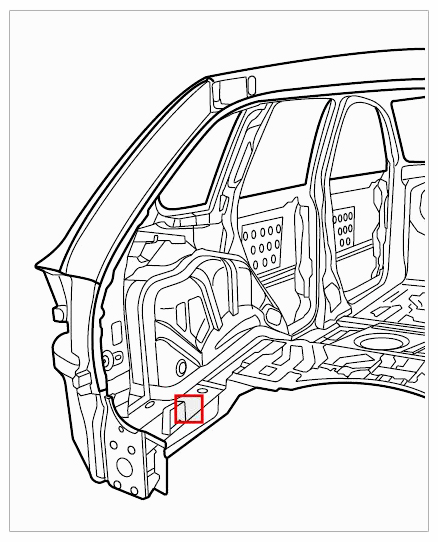

      Fig 12: Overview Of Side Member (Behind)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

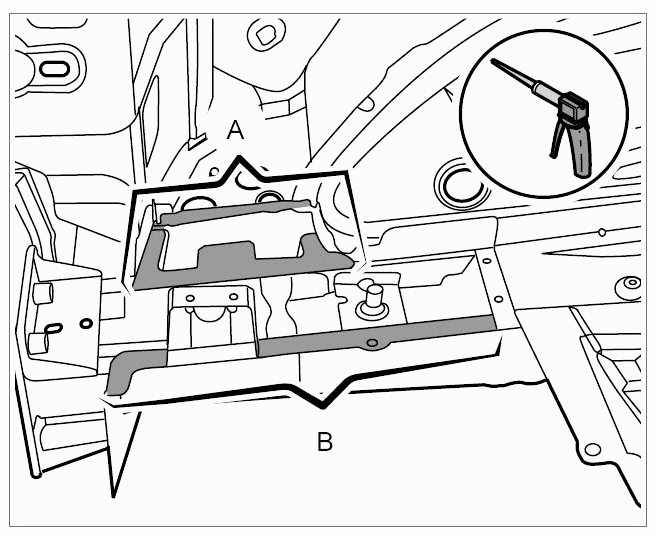

7. Apply adhesive to the side member.
   1. 7.1. Apply Teromix-6700 two-component adhesive  to the side member in areas -A and B-  . Maintain the application depth → Application depth: 4 mm  .
      Fig 13: Applying Adhesive

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Fit the floor section on the body and weld it in.

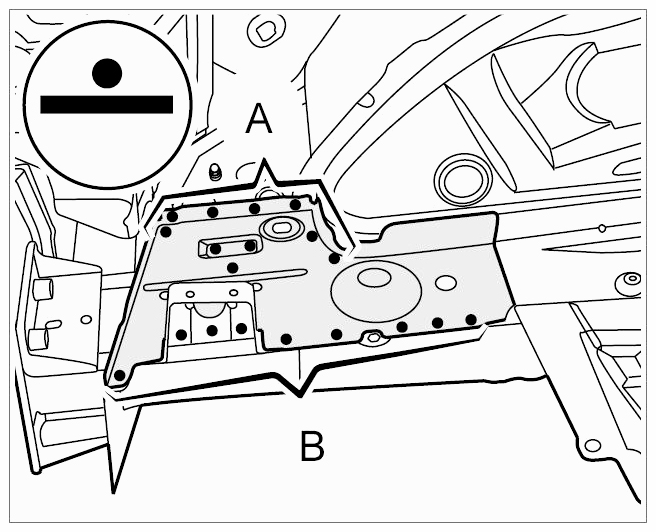

   1. 8.1. Fix the floor section to the body with tensioning clamps.
   2. 8.2. Resistance spot-weld the floor section in areas -A and B-  .
      Fig 14: Identifying Welded Joints On Floor Section

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 8.3. Plug-weld the floor section in area -A-  using inert gas.
      Fig 15: Identifying Welded Joints On Floor Section

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

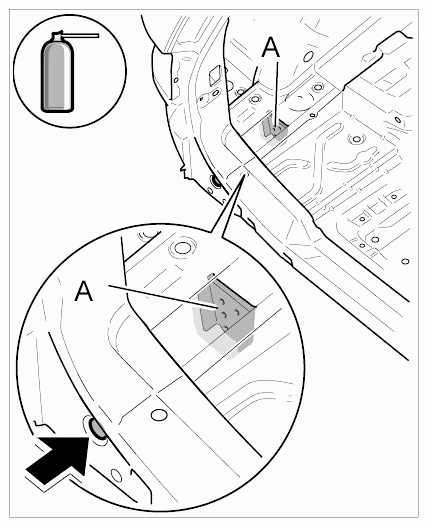

9. Fill the side member with foam.
   1. 9.1. Fill the side member with foam from behind through the opening on the frame head -arrow-  close to the seal -A-  . → 5000IN PROCESSING BODY ACOUSTIC FOAM 2K-AFS VARIO .
      Fig 16: Filling Rear Side Member With Foam

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Install spare-wheel well. → Installing Spare-Wheel Well With Cross Member And Side Floor Sections
11. Install lock carrier. → Installing Lock Carrier
12. Install end plate. → Installing End Plate
